330031 Whirlpool Range Surface Element Receptacle Kit – Complete Electrical Connection Solution

The 330031 is a genuine OEM Whirlpool range surface element receptacle kit designed for Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Estate, Inglis, Jenn-Air, and Amana electric ranges and cooktops. This critical component provides the electrical connection between the range wiring and the coil surface element (burner), allowing power to flow to the heating element.

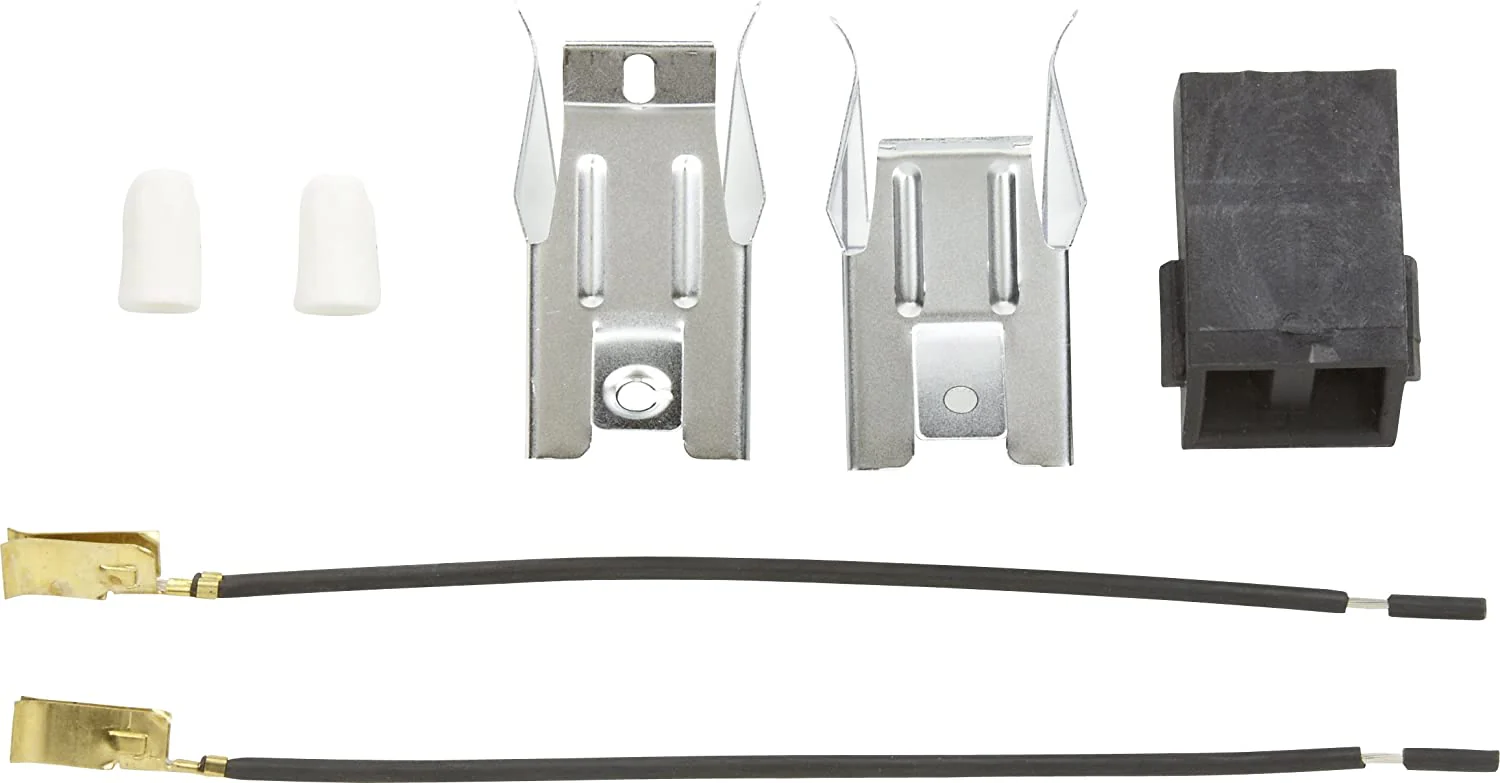

✓ What's Included in the Kit

• Ceramic or porcelain receptacle block (terminal block with metal contact pins)
• Two metal mounting brackets (use one that matches your range configuration)
• Two high-temperature wire leads with pre-crimped terminals
• Two ceramic wire nuts for secure electrical connections
• Two heat-shrink insulators for wire protection
• One mounting screw for secure installation

✓ Key Features

• Premium Construction: High-temperature ceramic/porcelain receptacle block resists heat and electrical arcing, nickel-plated brass contact pins provide reliable connection and resist corrosion
• Universal Design: Compatible with both 6-inch and 8-inch coil surface elements, dual contact pin configuration for 240V AC power
• Wide Compatibility: Replaces 5303935058 and 150+ other part numbers, fits Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Estate, Inglis, Jenn-Air, and Amana ranges

✓ Common Symptoms This Part Fixes

• Burner doesn't heat at all (no power to element)
• Burner heats intermittently or cycles on and off (poor electrical contact)
• Visible burn marks or blackening on receptacle (arcing or overheating damage)
• Melted or damaged receptacle block (severe overheating)
• Burning smell from burner area (receptacle overheating)
• Sparking or arcing when element is plugged in (damaged contact pins)
• Element pigtail terminals are burned or corroded
• Burner trips circuit breaker (short circuit in receptacle)

✓ Performance and Benefits

This kit solves the common issue of faulty surface elements by providing a dependable replacement that restores your range's heating efficiency, preventing uneven cooking and potential safety hazards. From XPart Supply Ltd., it enhances your kitchen experience with reliable performance, saving time and money on professional repairs while ensuring consistent results for everyday meal preparation.

IMPORTANT: When the surface element receptacle fails, always replace both the receptacle and the coil element together—a damaged receptacle damages the element terminals, and damaged element terminals damage the new receptacle.

CRITICAL SAFETY WARNING: Always unplug the range or turn off the circuit breaker before working on the surface element receptacle to prevent electrical shock. This repair involves working with 240V electrical components—if uncomfortable with this repair, hire a qualified appliance technician.
