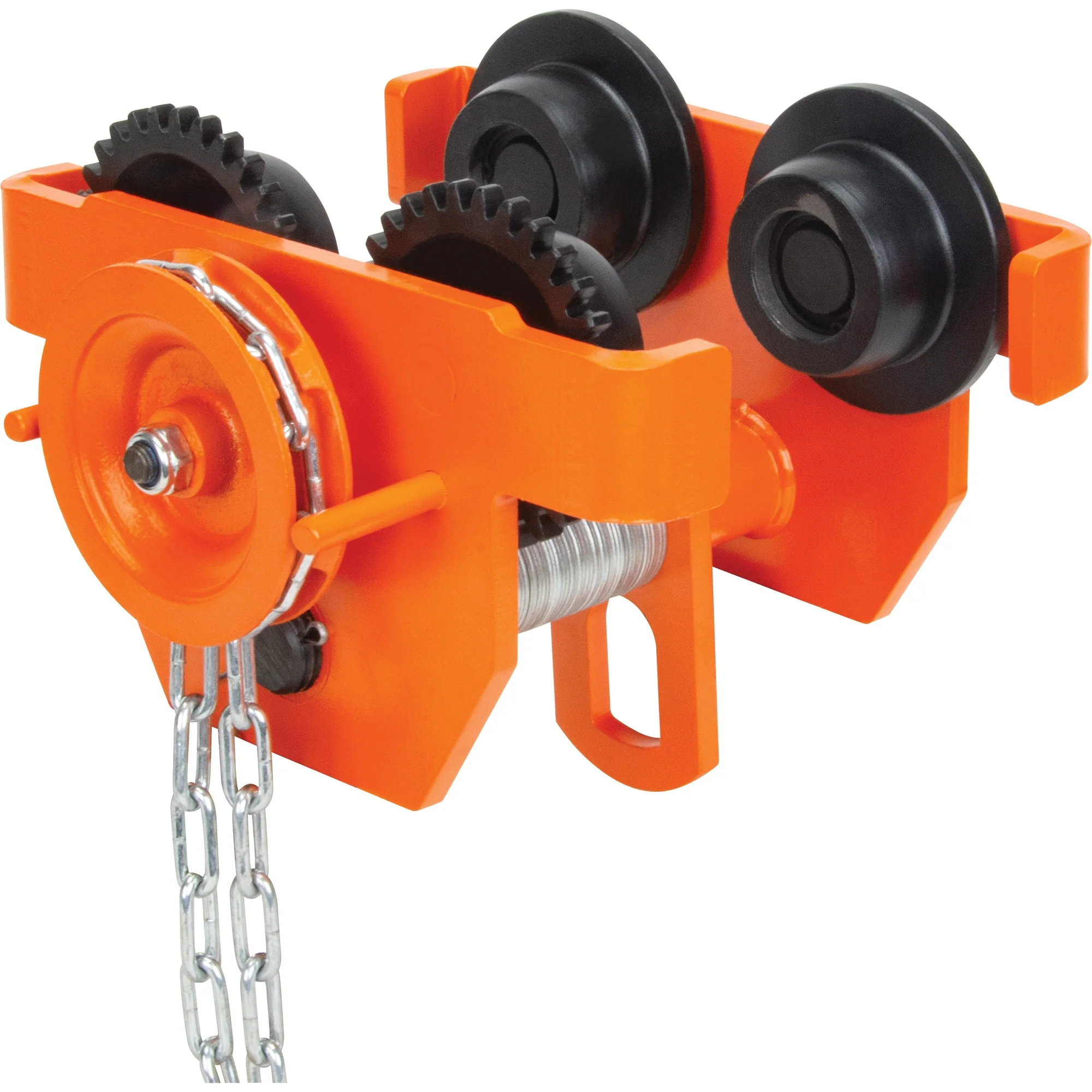

Adjustable Trolley with Safety Plates, 10000 lbs. (5 tons) Capacity, 4-14/16" - 6-7/8"
- Easily adjusts to fit various flanges, I-beams and H-beams
- Use on straight or curved track
- Can be installed or removed at any position on the beam
- Heavy-duty cast iron wheels
- Deep width flange provides superior contact with the beam
- Safety plate included
- Geared trolleys include two geared wheels operated by hand chain
- Meets ANSI B30.11
- Capacity: 10000 lbs. (5 tons)
- I-Beam Flange Width: 4-14/16" - 6-7/8"
- Manufacturer's Warranty: 1 Year Limited
- Net Weight: 74.97 lbs.

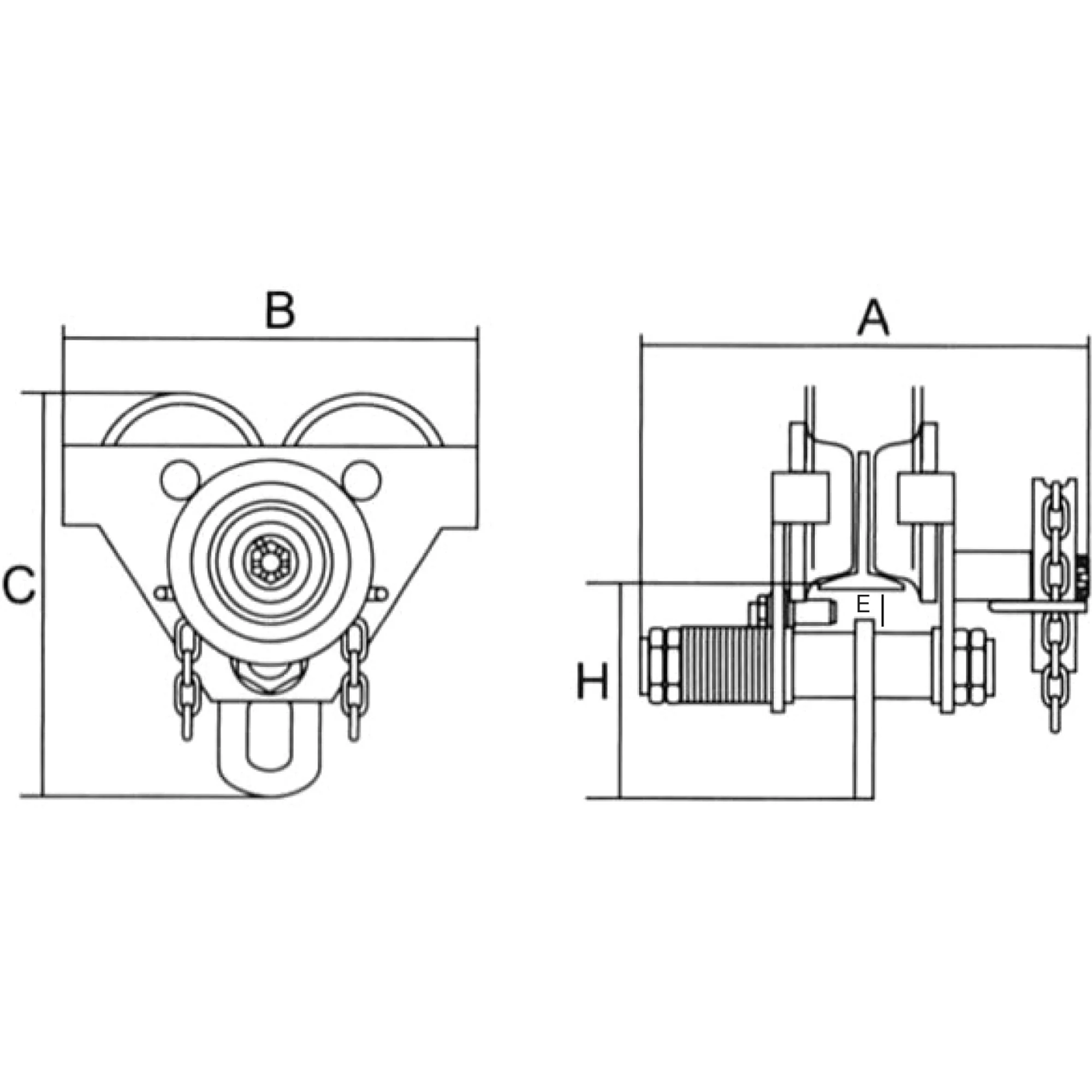

- A: 13-9/16"
- B: 14-1/8"
- C: 14-1/8"
- E: 13/16"
- H: 7-3/16"
$395.98
Adjustable Trolley with Safety Plates, 10000 lbs. (5 tons) Capacity, 4-14/16" - 6-7/8"—
$395.98
More Images
Adjustable Trolley with Safety Plates, 10000 lbs. (5 tons) Capacity, 4-14/16" - 6-7/8"
- Easily adjusts to fit various flanges, I-beams and H-beams
- Use on straight or curved track
- Can be installed or removed at any position on the beam
- Heavy-duty cast iron wheels
- Deep width flange provides superior contact with the beam
- Safety plate included
- Geared trolleys include two geared wheels operated by hand chain
- Meets ANSI B30.11
- Capacity: 10000 lbs. (5 tons)
- I-Beam Flange Width: 4-14/16" - 6-7/8"
- Manufacturer's Warranty: 1 Year Limited
- Net Weight: 74.97 lbs.
- A: 13-9/16"
- B: 14-1/8"
- C: 14-1/8"
- E: 13/16"
- H: 7-3/16"
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Easily adjusts to fit various flanges, I-beams and H-beams
- Use on straight or curved track
- Can be installed or removed at any position on the beam
- Heavy-duty cast iron wheels
- Deep width flange provides superior contact with the beam
- Safety plate included
- Geared trolleys include two geared wheels operated by hand chain
- Meets ANSI B30.11
- Capacity: 10000 lbs. (5 tons)
- I-Beam Flange Width: 4-14/16" - 6-7/8"
- Manufacturer's Warranty: 1 Year Limited
- Net Weight: 74.97 lbs.
- A: 13-9/16"
- B: 14-1/8"
- C: 14-1/8"
- E: 13/16"
- H: 7-3/16"
