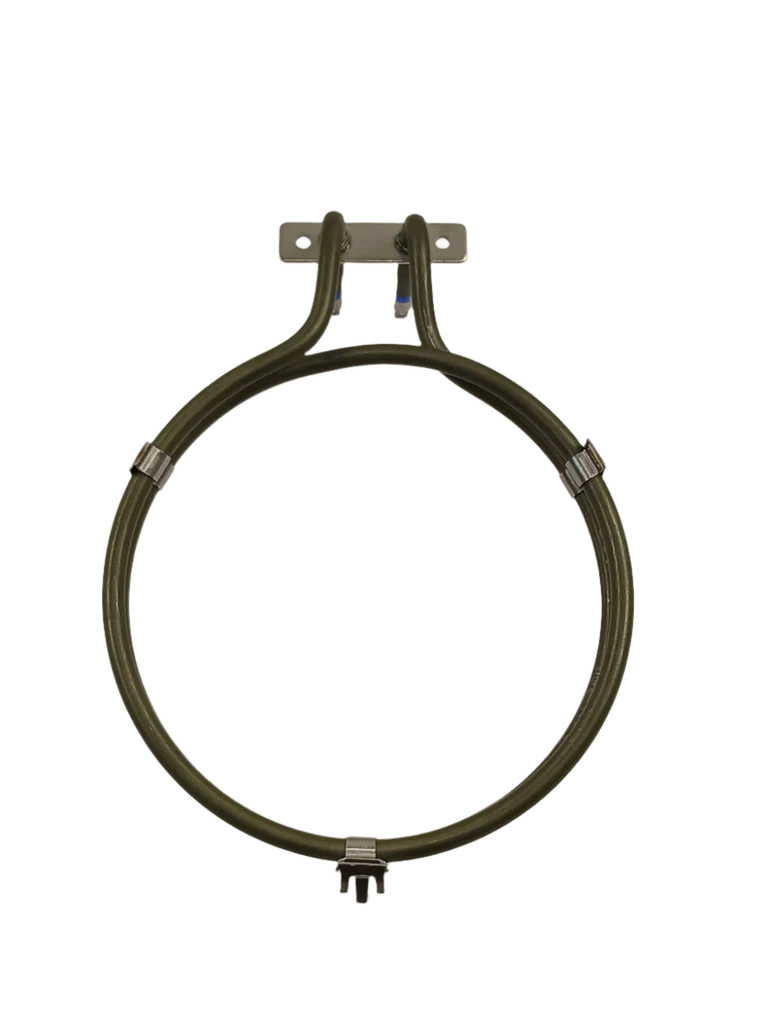

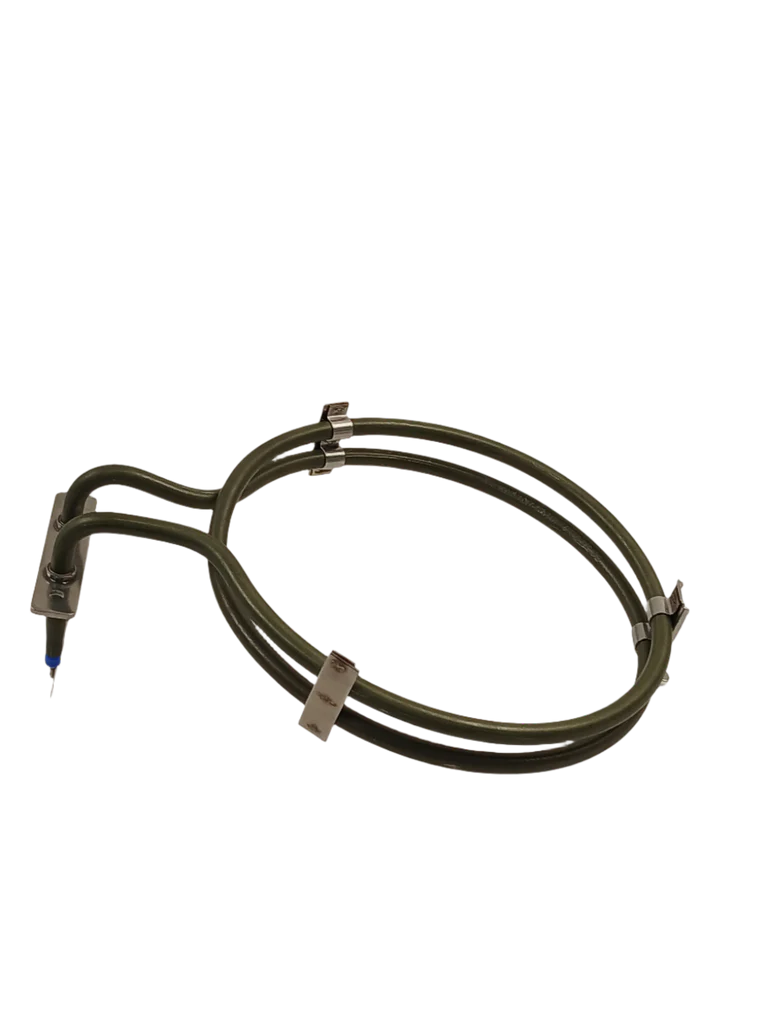

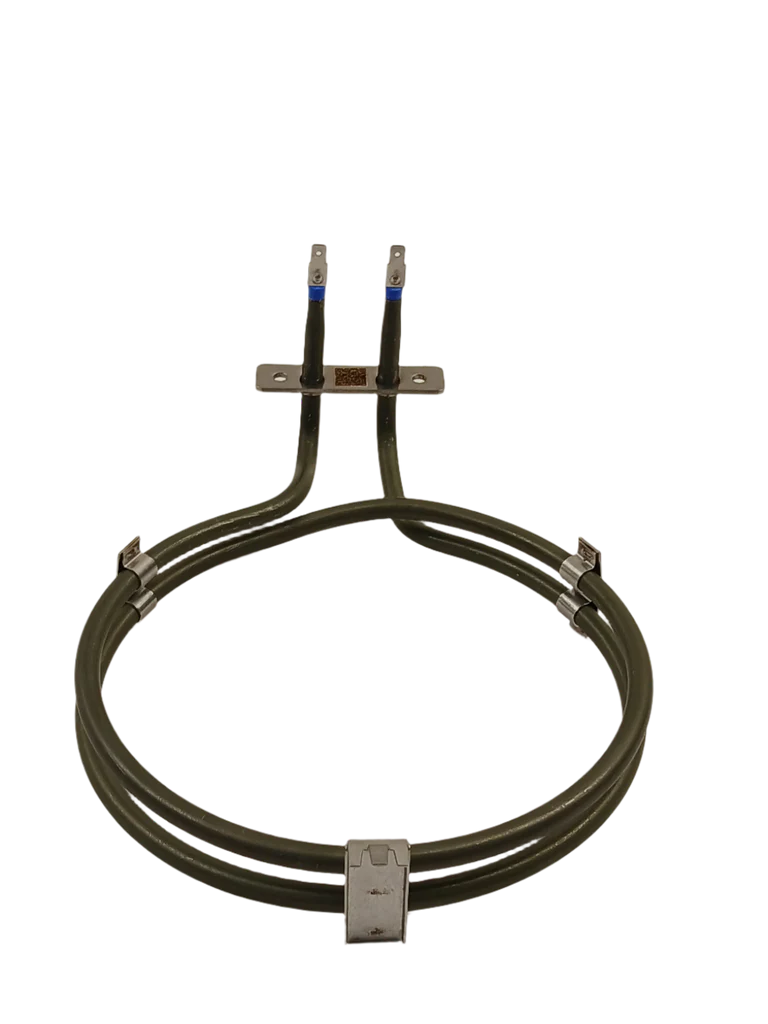

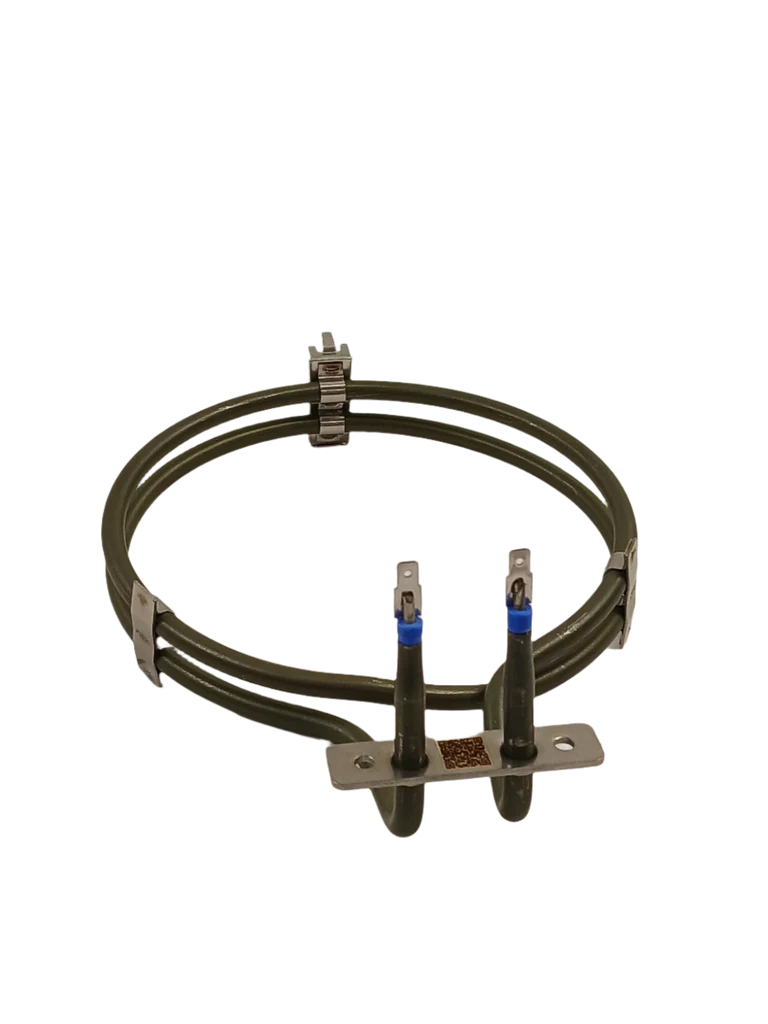

The DG47-00009C is a genuine OEM range oven convection element for Samsung ranges. This convection element is a critical component that provides heat for convection cooking, working in conjunction with the convection fan to circulate hot air throughout the oven cavity for faster, more even cooking and baking. The convection element is a complete, self-contained unit constructed from a durable metal heating element (typically nichrome wire encased in a metal sheath, rated for high-temperature operation), electrical terminals for power connection (typically two-prong or screw terminal configuration), and a mounting bracket or flange for secure attachment to the rear oven wall or convection fan housing. The assembly measures approximately 8-10 inches in diameter (circular or ring-shaped design), with a thickness of approximately 0.5-1 inch, weighing approximately 1-2 pounds. The convection element mounts to the rear oven wall behind the convection fan, surrounding the fan motor shaft, and connects to the oven's electrical system via a wire harness or direct terminal connection. The DG47-00009C replaces older part numbers including PD00054172, AP6023620, PS12086112, EAP12086112, and others with improved heating efficiency, durability, and temperature distribution. The convection element operates through electrical resistance heating: (1) when the oven is set to convection mode (convection bake, convection roast, or true convection), the oven control board sends electrical power (typically 240V AC) to the convection element terminals; (2) the electrical current flows through the high-resistance heating coil, generating heat through resistive heating (I²R heating); (3) the heating element reaches temperatures of 800-1000°F, glowing red or orange; (4) the convection fan (located directly in front of the element) circulates the heated air throughout the oven cavity, ensuring even temperature distribution and faster cooking; (5) the oven control board cycles the convection element on and off to maintain the selected temperature; (6) when the oven is turned off or switched to standard bake mode, power is cut to the convection element and it cools down. The convection element typically operates at 2000-2500 watts (240V AC, approximately 8-10 amps), providing sufficient heat output for efficient convection cooking. Over time, oven convection elements can fail due to heating coil breakage or burnout (from age, thermal stress, or electrical surge), element cracking or damage (from thermal shock or physical impact), electrical terminal corrosion or damage (preventing proper electrical connection), poor electrical contact (causing intermittent heating or no heating), metal sheath corrosion or deterioration (from moisture or age), or manufacturing defects. When the convection element fails, symptoms include the convection mode not heating at all (no heat production in convection mode), the convection mode heating slowly or producing insufficient heat, the oven taking much longer than normal to preheat in convection mode, uneven cooking or baking in convection mode (hot spots or cold spots), the convection element not glowing red or orange during operation, the oven displaying error codes related to convection heating, or the convection element appearing visibly damaged, cracked, or broken. The DG47-00009C is a complete replacement convection element that restores full convection heating capacity and eliminates all convection-related problems. Replacing a faulty convection element eliminates all convection heating problems and restores reliable, efficient convection cooking. Important: Always turn off the circuit breaker and unplug the range before working on it to prevent electrical shock. This is a moderately advanced repair requiring careful handling of electrical connections, oven disassembly, and understanding of high-voltage electrical systems (240V AC). Verify your range model number before ordering. Test the old convection element with a multimeter before replacement to confirm element failure. This repair can be completed by most homeowners with intermediate electrical and mechanical skills and careful attention to safety.
