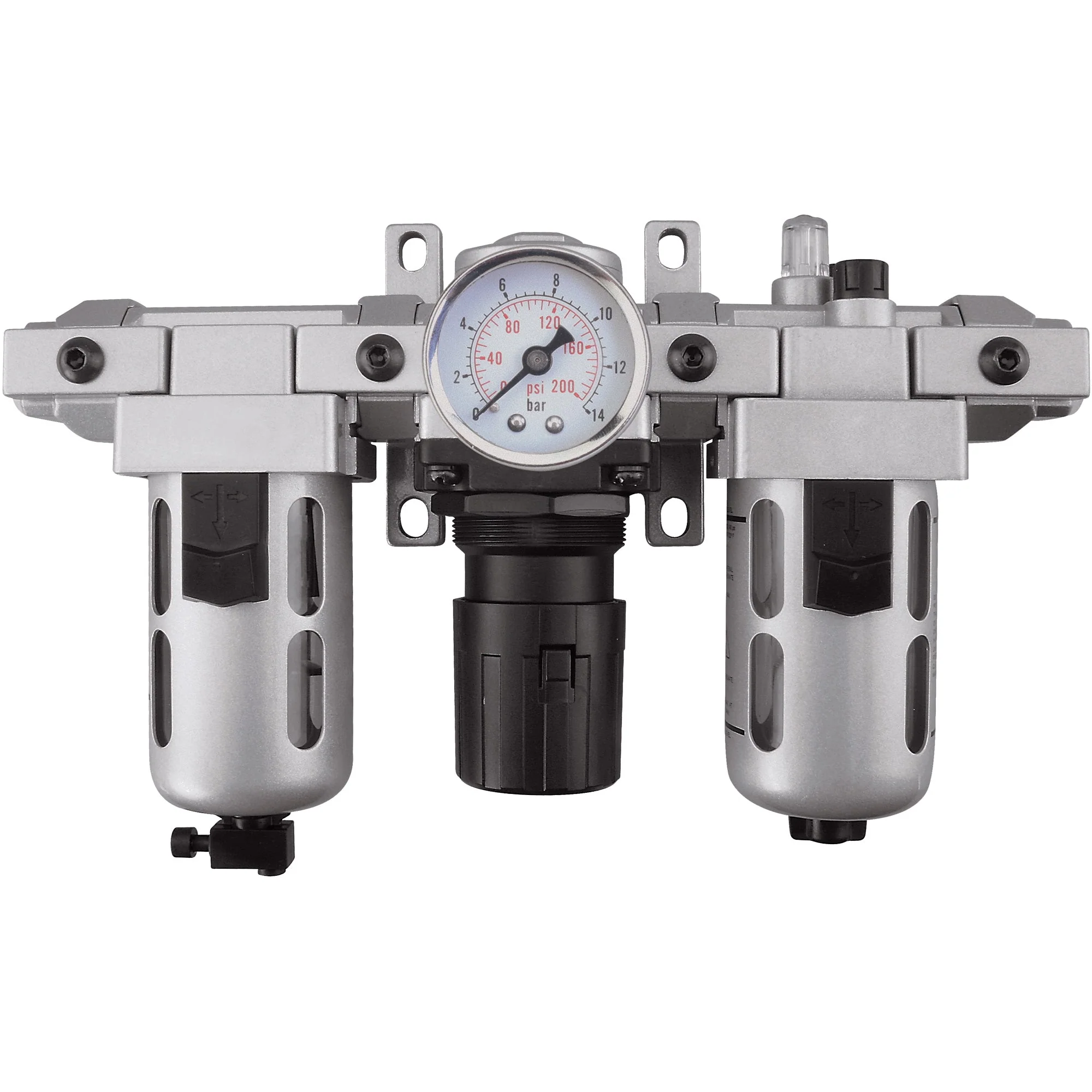

Modular Filter, Regulator & Lubricator (Gauge Included), 1/4" NPT
- Assembly of all three individual components
- Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
- Comes complete with wall mounting bracket
- Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
- Filter used to separate dust, dirt, moisture and other contaminants from compressed air
- Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
- Filter has sintered bronze, 40-micron filtering element
- Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
- Fog/Micro Mist type lubricator, up to 50' pipe runs
- Air filter, regulator and lubricator come with NPT threads and gauge
- Connection Size: 1/4" NPT
- Max. Air Flow: 18 SCFM @ 105 PSI
- Operating Pressure: 7-145 PSI
- Bowl Material: Polycarbonate
- Bowl Capacity: 0.68 fl. oz.
- Filter Bowl Capacity: 0.30 oz.
- Lubricator Bowl Capacity: 0.68 oz.
- Series: FRL100
