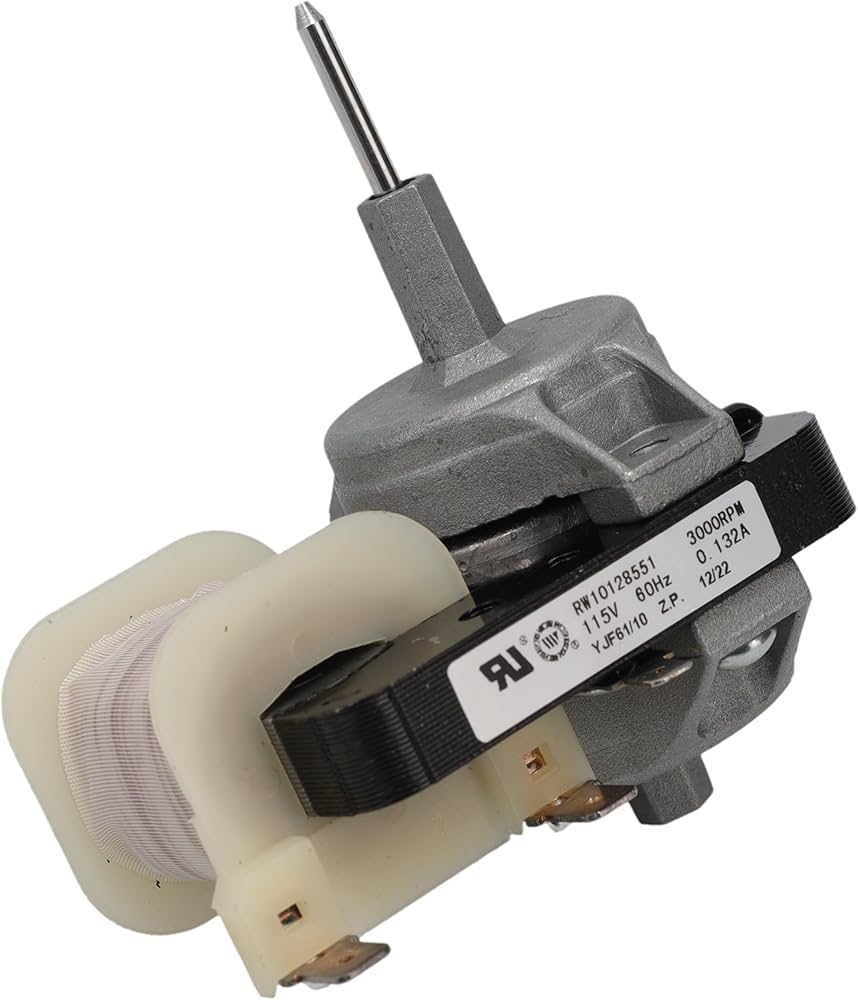

85-GEFM-1 Universal Refrigerator Evaporator Fan Motor – High-Performance Cooling

The Alltemp Universal 85-GEFM-1 Refrigerator Evaporator Fan Motor is a high-quality replacement designed to meet or exceed OEM specifications. This evaporator motor is located in the back of the freezer and circulates air over the coils to maintain proper cooling throughout your refrigerator.

Key Features and Design

• Universal Compatibility: Designed to replace multiple OEM part numbers including WR60M136 and SM338.
• High Performance: 1 HP motor with 350 watts, 2600 RPM for efficient air circulation.
• Precise Specifications: 115V, 0.30 Amps, single speed, clockwise rotation.
• Quality Construction: Built to meet or exceed OEM specifications for reliable long-term performance.
• Easy Installation: Stud mounting with 2-1/2" x 1/8" shaft for straightforward replacement.

Technical Specifications

• HP: 1
• Watt: 350
• RPM: 2600
• Voltage: 115
• Amps: 0.30
• Speed: 1
• Rotation: CW (Clockwise)
• Shaft: 2-1/2" x 1/8"
• Mounting: Stud

Performance and Benefits

By replacing a faulty evaporator fan motor with this universal replacement, you'll restore proper air circulation and temperature control throughout your refrigerator. This motor ensures consistent cooling performance and helps prevent frost buildup and temperature fluctuations.

Common Symptoms of Failure

• Fridge section is too warm or too cold
• Freezer section is too warm or too cold
• Frost buildup in freezer
• Unusual noises from freezer compartment
• Water leaking from refrigerator
• Fan not running or running intermittently

Installation Guidance

The evaporator fan motor is located in the back of the freezer compartment behind the rear panel. Installation requires basic tools and mechanical aptitude. Ensure power is disconnected before beginning work.

Part Number 85-GEFM-1 replaces WR60M136, SM338

Note: This part is also known as a blower motor.

IMPORTANT: Disconnect power before servicing. Verify motor specifications match your original motor before installation.
