W11182108 Range Oven Bake Element (Lower Bake Element, Heating Element, Oven Element)

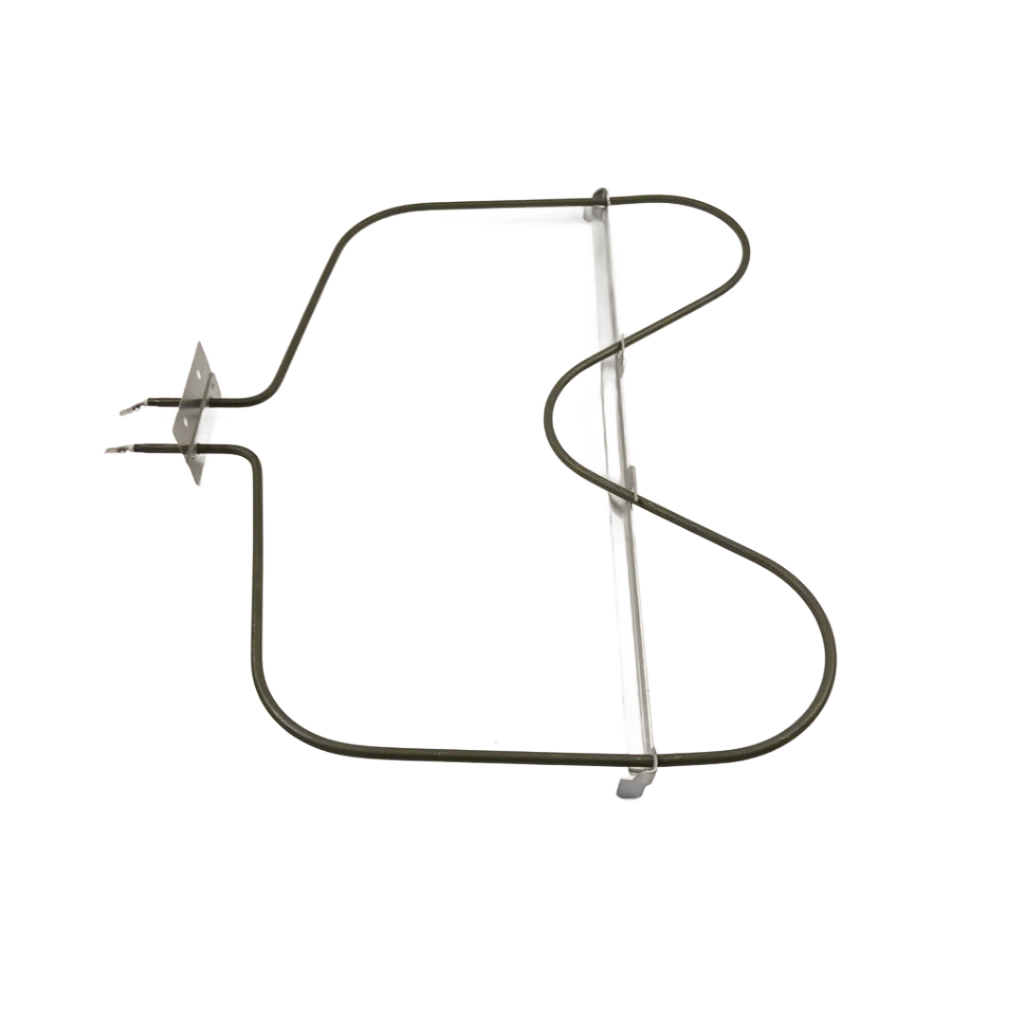

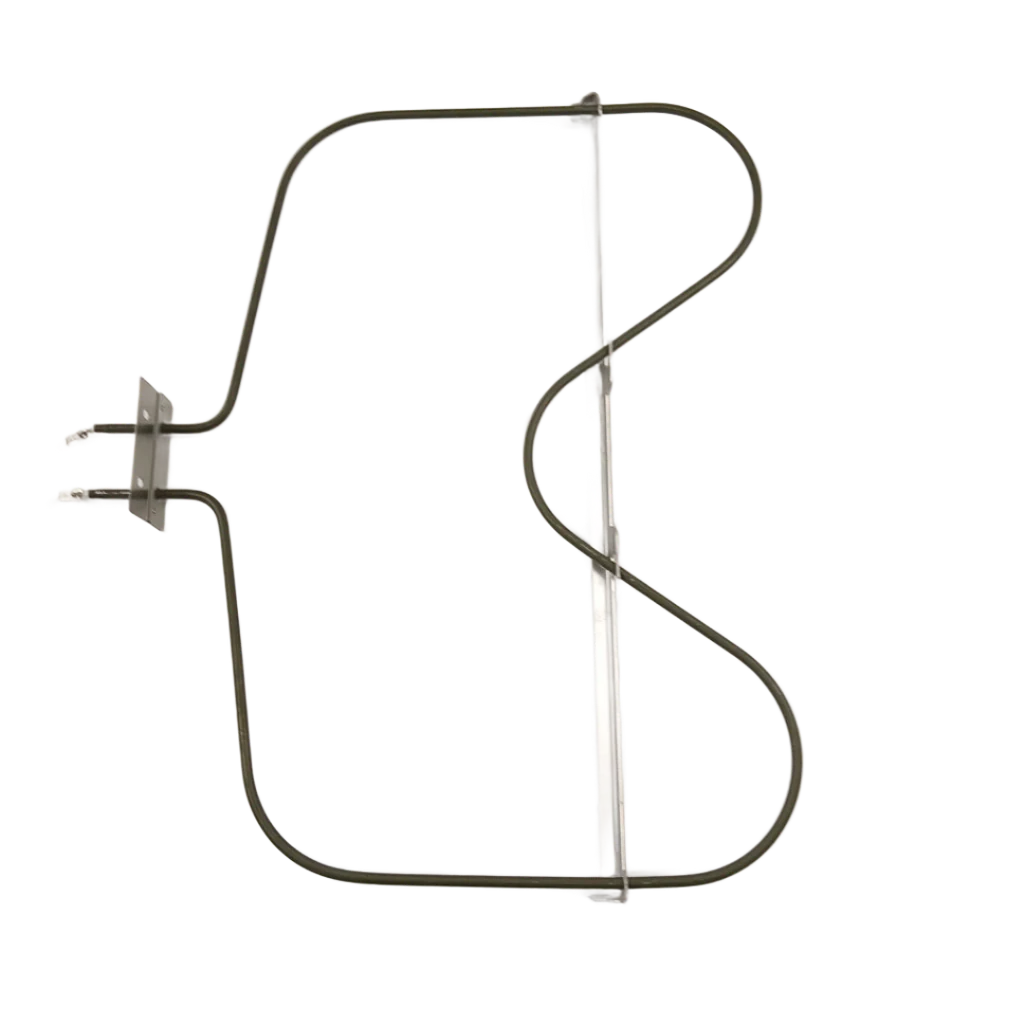

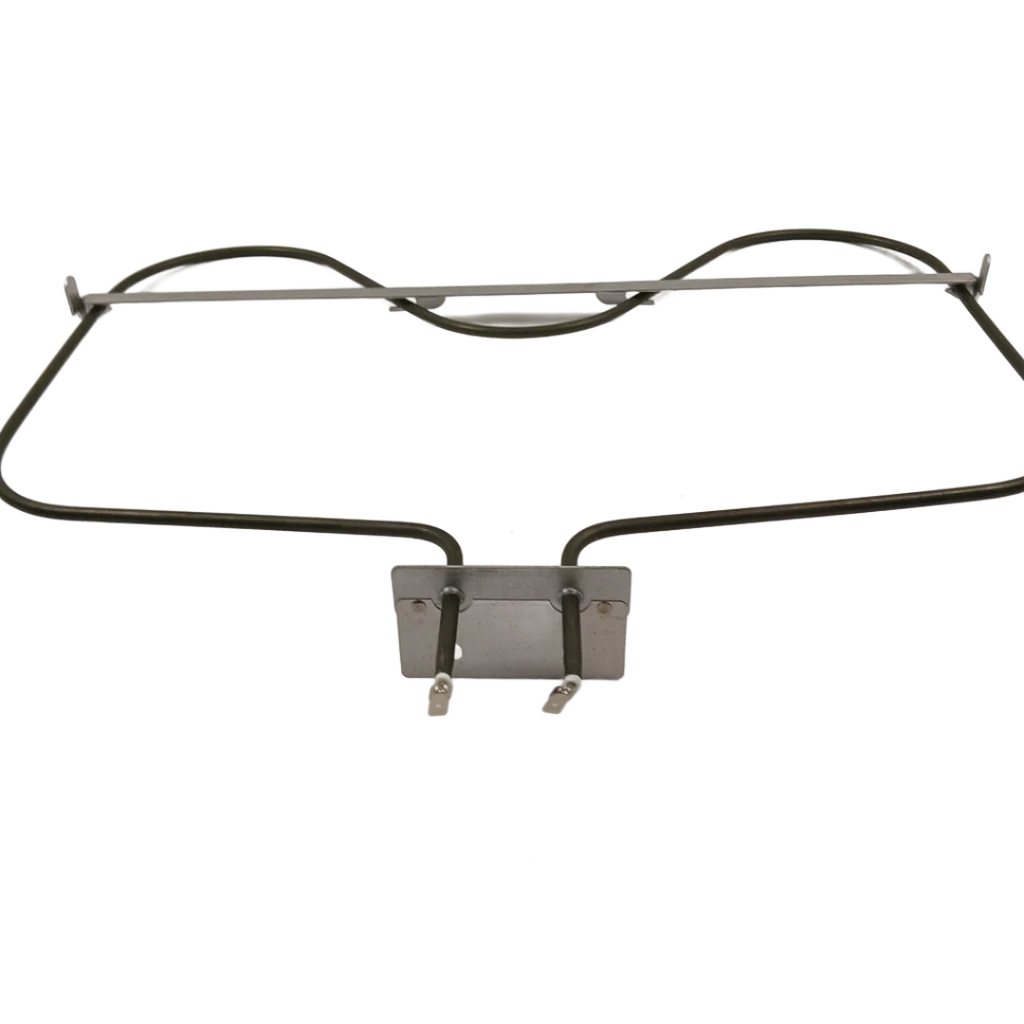

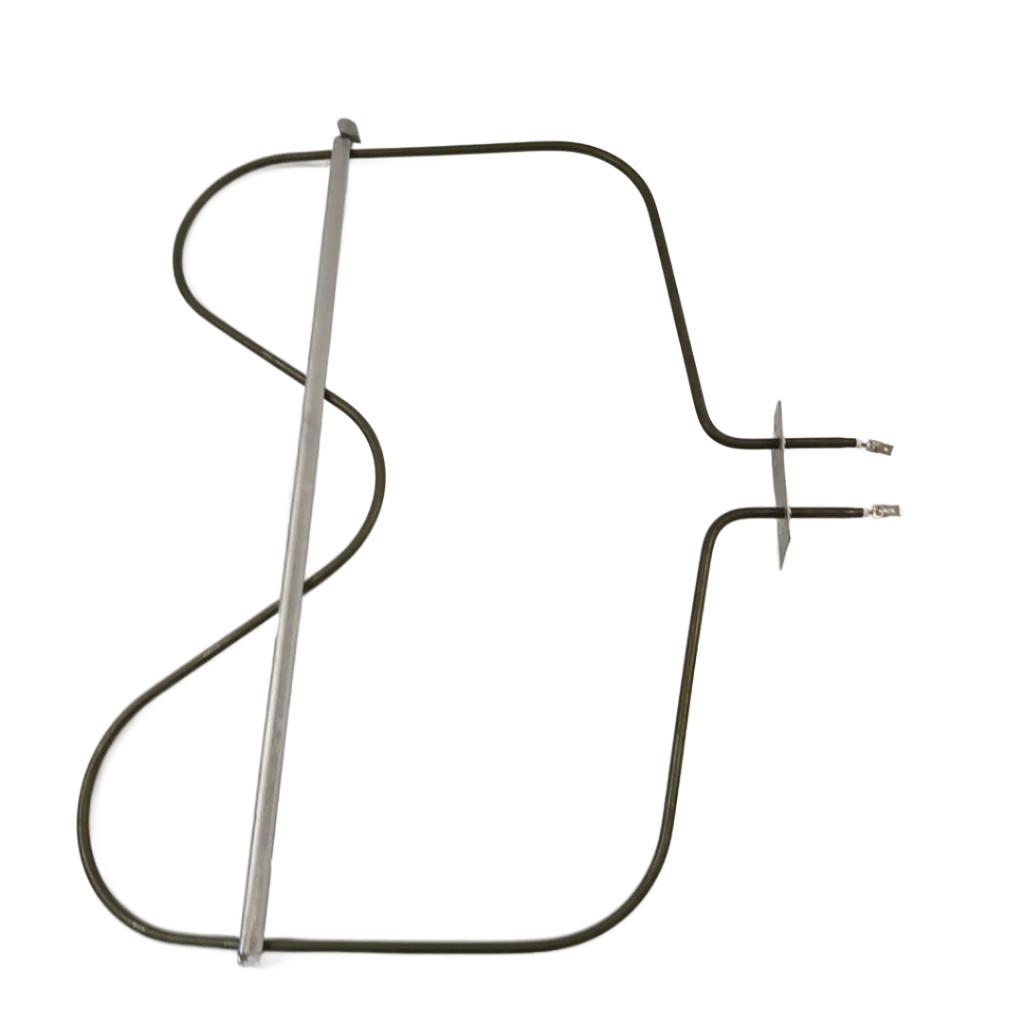

W11182108 Range Oven Bake Element
The W11182108 is a genuine OEM lower bake element for Whirlpool and compatible electric ranges. This element is installed at the bottom of the oven cavity and provides the primary heat source for baking. It features a high-resistance nickel-chromium (nichrome) wire encased in a robust steel sheath, mounting brackets, and factory-attached terminals for direct replacement. Engineered for even heat distribution, rapid preheating, and long service life. Typical lifespan is 7–12 years; failures are most often due to open circuit, burnout, or terminal corrosion. Symptoms: oven not heating, uneven baking, visible breaks or burn marks on element, or error codes. IMPORTANT: Only use OEM elements for safety and optimal performance. CRITICAL: Always disconnect power before servicing.
$68,681.19
W11182108 Range Oven Bake Element (Lower Bake Element, Heating Element, Oven Element)—
$68,681.19
More Images
W11182108 Range Oven Bake Element (Lower Bake Element, Heating Element, Oven Element)
W11182108 Range Oven Bake Element
The W11182108 is a genuine OEM lower bake element for Whirlpool and compatible electric ranges. This element is installed at the bottom of the oven cavity and provides the primary heat source for baking. It features a high-resistance nickel-chromium (nichrome) wire encased in a robust steel sheath, mounting brackets, and factory-attached terminals for direct replacement. Engineered for even heat distribution, rapid preheating, and long service life. Typical lifespan is 7–12 years; failures are most often due to open circuit, burnout, or terminal corrosion. Symptoms: oven not heating, uneven baking, visible breaks or burn marks on element, or error codes. IMPORTANT: Only use OEM elements for safety and optimal performance. CRITICAL: Always disconnect power before servicing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
W11182108 Range Oven Bake Element
The W11182108 is a genuine OEM lower bake element for Whirlpool and compatible electric ranges. This element is installed at the bottom of the oven cavity and provides the primary heat source for baking. It features a high-resistance nickel-chromium (nichrome) wire encased in a robust steel sheath, mounting brackets, and factory-attached terminals for direct replacement. Engineered for even heat distribution, rapid preheating, and long service life. Typical lifespan is 7–12 years; failures are most often due to open circuit, burnout, or terminal corrosion. Symptoms: oven not heating, uneven baking, visible breaks or burn marks on element, or error codes. IMPORTANT: Only use OEM elements for safety and optimal performance. CRITICAL: Always disconnect power before servicing.
