W11212745 Washer Shift Actuator

W11212745 Washer Shift Actuator

W11212745 Washer Shift Actuator

The W11212745 is a genuine OEM washer shift actuator for Whirlpool, Maytag, Kenmore, Amana, and Roper top-load washing machines. This shift actuator is the critical electromechanical component that controls the transmission mode switching between agitate and spin cycles, enabling the washer to transition smoothly between washing and water extraction operations. The actuator is constructed from durable materials including a compact electric motor (typically 120V AC synchronous or stepper motor), precision gear reduction mechanism (converts motor rotation into linear or rotary actuator motion), position sensor or switch (provides feedback to control board on actuator position), mechanical linkage or cam assembly (engages with transmission shift mechanism), durable plastic or metal housing (protects internal components), and a 6-pin electrical connector (connects to control board wiring harness for power and control signals). The assembly measures approximately 4-6 inches in length, 3-4 inches in width, and 2-3 inches in height, weighing 1-2 pounds. The actuator mounts directly to the transmission assembly at the bottom of the washer tub, connecting mechanically to the transmission shift mechanism and electrically to the control board. The W11212745 replaces older part numbers WPW10389471, W10389471, W11112160, and other superseded versions with improved motor reliability, enhanced gear durability, better position sensing, and updated connector design. The shift actuator operates through precise electromechanical control: during the wash cycle, the control board sends signals to the actuator motor to position the transmission in agitate mode; the actuator motor rotates the internal gears, which move the mechanical linkage to engage the transmission agitate mechanism; the washer agitates back and forth to wash clothes; when the wash cycle completes and spin cycle begins, the control board signals the actuator to shift to spin mode; the actuator motor reverses or advances to the spin position, moving the linkage to disengage agitation and engage the spin clutch; the transmission locks the agitator and spin basket together for high-speed spinning; the position sensor provides feedback to the control board confirming the actuator has reached the correct position; if the actuator fails to reach position, the control board displays an error code and stops the cycle. Common failure causes include motor failure from age or electrical surge, gear wear or breakage from mechanical stress, position sensor failure preventing proper feedback, mechanical binding from debris or corrosion, water damage from leaks or high humidity, electrical connection failure, or manufacturing defects. When the shift actuator fails, symptoms include washer not agitating (motor runs but agitator doesn't move), washer not spinning or spinning weakly, washer stuck in one mode (agitate or spin), loud grinding or clicking noise from transmission area, error codes on control display (F7E1, F7E5, F7E7, LD, etc.), washer not advancing through cycles, intermittent agitation or spin, or actuator motor humming without movement. The W11212745 is a direct-fit replacement that restores proper transmission mode shifting and full wash functionality. Important: Always unplug the washer before working on electrical components. This is a moderate-advanced repair requiring access to the transmission area beneath the tub, disconnection of electrical and mechanical connections, and proper alignment during installation.


Key Features and Design

Crafted from high-quality materials, this actuator ensures durability and long-lasting performance, making it a dependable choice for everyday use. Its compact design allows for straightforward installation, helping you restore your washer without professional assistance. Compatible with models such as 11027022710, CAE2743BQ0, and others, it seamlessly replaces outdated parts like W10389471 and WPW10389471.

  • Durable construction: Built to withstand frequent cycles and provide reliable operation over time.
  • Easy installation: Saves time and effort, allowing you to get your appliance running smoothly again quickly.
  • Versatile compatibility: Fits a wide range of washer models, ensuring broad applicability for various households.

Performance and Benefits

This actuator enhances your washer's efficiency by ensuring smooth shifting between wash modes, effectively resolving problems like inconsistent agitation or cycle interruptions. From XPart Supply Ltd., it helps extend the life of your appliance, saving you money on repairs and delivering a hassle-free laundry experience for everyday convenience.

This W11212745 Washer Shift Actuator is an ideal replacement for your worn-out part. Made of high quality materials, it offers a durable, reliable performance and is easy to install. Get your appliance back to working like new with this great replacement.

Part number W11212745 replaces W10389471, W11112160, WPW10389471

 Supported Models:

11027022710, 11027022711, 1102992310, CAE2743BQ0, CAE2745FQ0, CAE2763BQ0, CAE2763CQ0, CAE2765FQ0, CAE2793BQ0, CAE2793CQ0, CAE2795FQ0, MAT20CSAWW0, MAT20MNAWW0, MAT20PDAWW0, MAT20PDAXW0, MAT20PRAWW0, MVW18CSAWW0, MVW18CSBWW0, MVW18MNAWW0, MVW18MNBWW0, MVW18PDAWW0, MVW18PDAXW0, MVW18PDBWW0, MVW18PDBXW0, MVW18PRAWW0, MVW18PRBWW0, MVWP575GW0, MVWP576KW0, MVWP576KW1, QCAE2733BQ0, QCAE2735FQ0

$14.24

Original: $47.46

-70%
W11212745 Washer Shift Actuator—

$47.46

$14.24

More Images

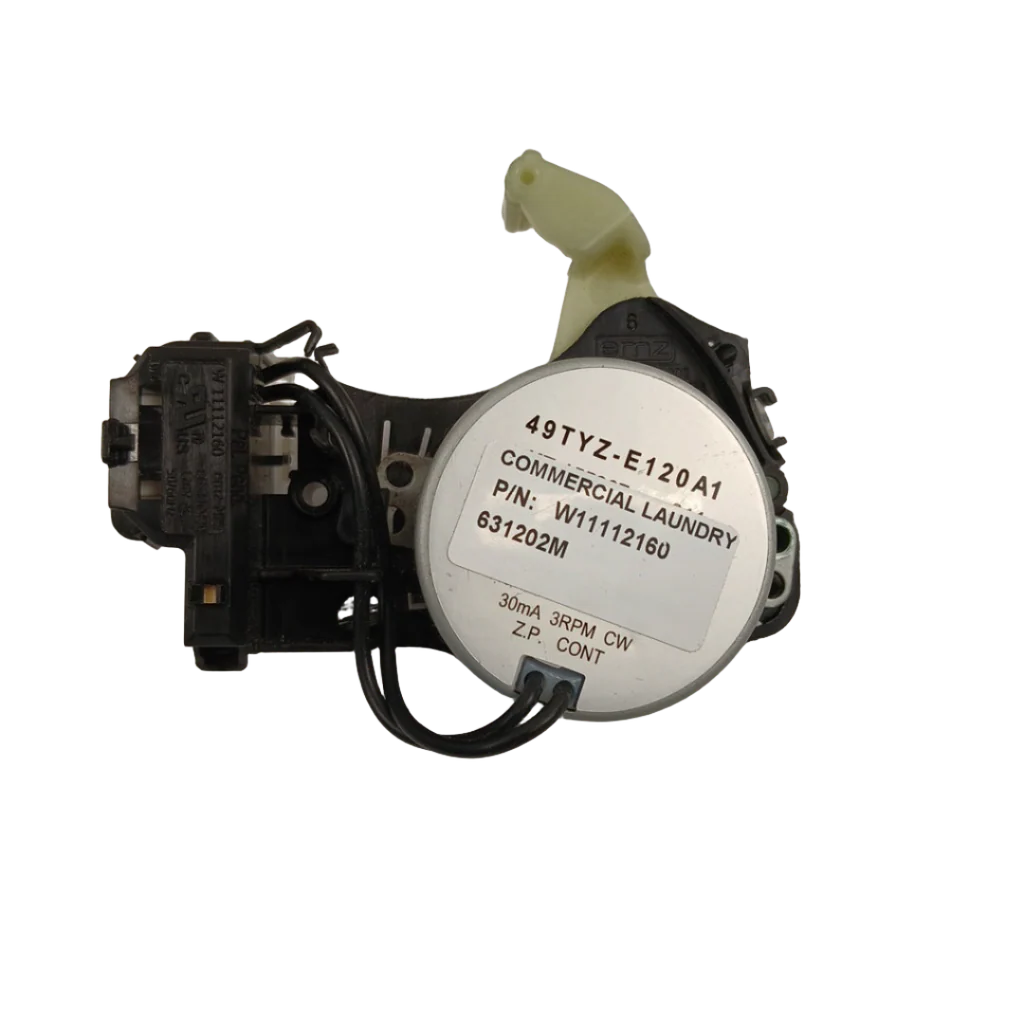

W11212745 Washer Shift Actuator - Image 2

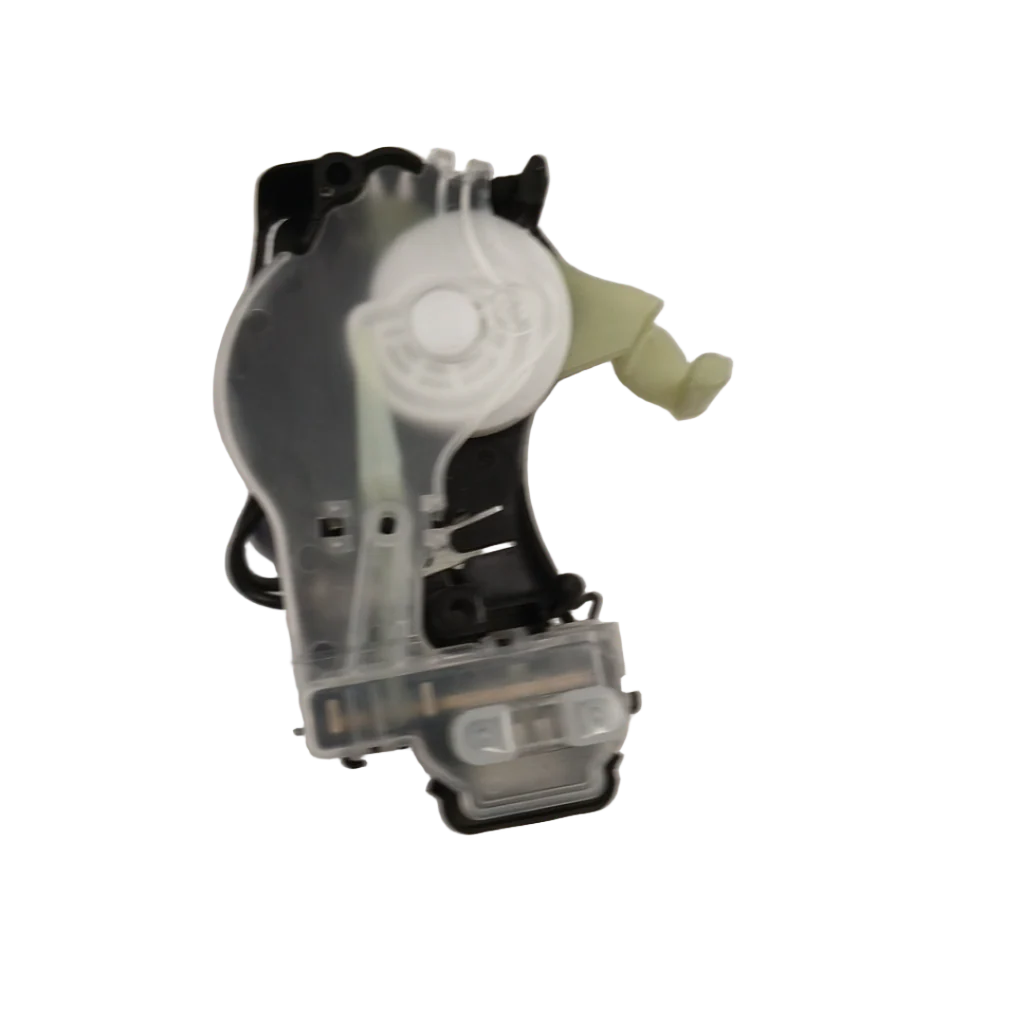

W11212745 Washer Shift Actuator - Image 3

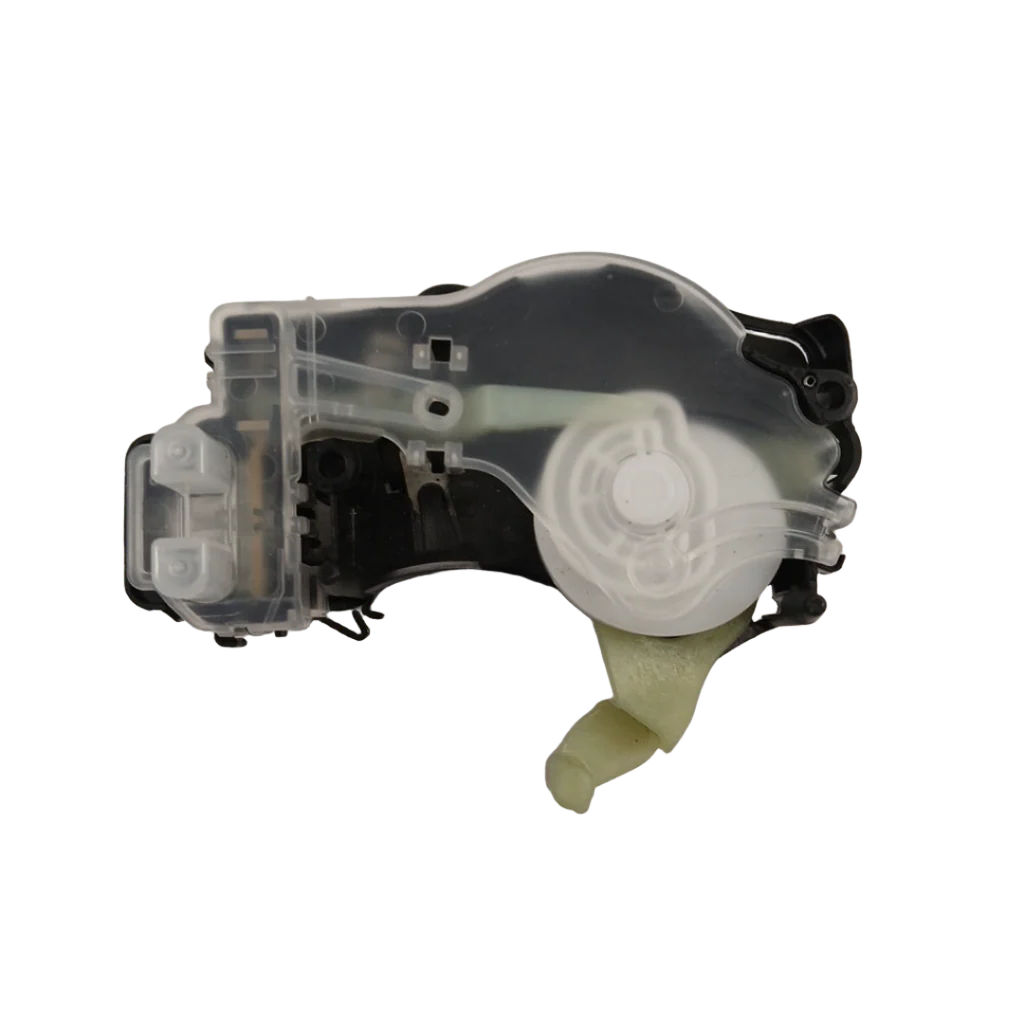

W11212745 Washer Shift Actuator - Image 4
