W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt)
HomeStore

W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt)

W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt)

W11239857 Washer Drive Belt

The W11239857 is a genuine OEM washer drive belt used on many Whirlpool-family belt-driven VMW top-load washers. This belt transfers torque from the drive motor pulley to the splutch/drive system to produce agitation and spin. It’s a high-friction rubber belt engineered for controlled slip during start/stop and load balancing events. Common failures include glazing, stretching, cracking, rib wear, contamination from oil/grease, or belt slip caused by a worn splutch, damaged pulley surfaces, or a failing motor/bearing adding drag. Symptoms: no/weak agitation, no/weak spin, burning rubber smell, squeal on start, basket not reaching full RPM, or intermittent “won’t spin with load” complaints. IMPORTANT: If the belt is damaged, inspect the splutch and pulleys—belt failure is often secondary. CRITICAL: Unplug washer before servicing; tipping the unit requires safe handling.
$58,890.47
W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt)—
$58,890.47

More Images

W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt) - Image 2

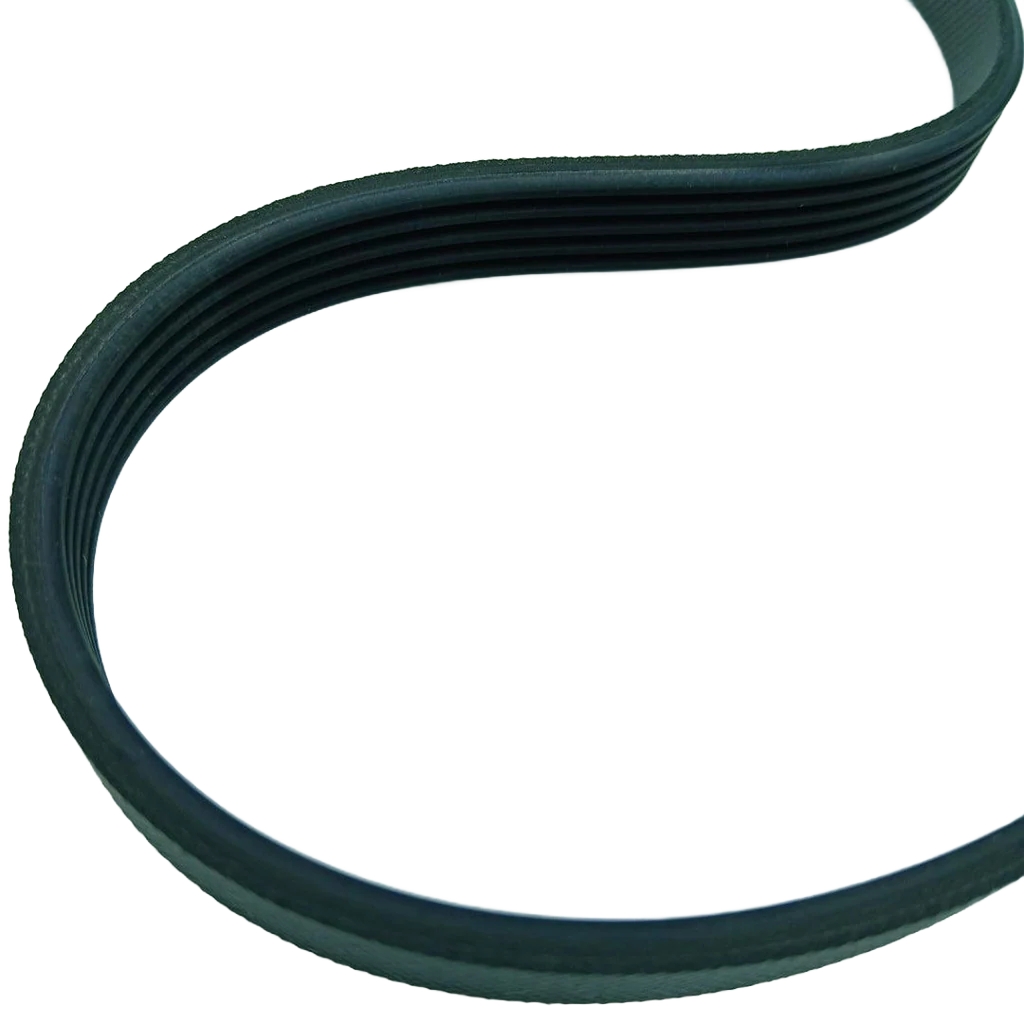

W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt) - Image 3
W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt) - Image 4

W11239857 Washer Drive Belt (Drive Belt, Motor Belt, Splutch Belt)

W11239857 Washer Drive Belt

The W11239857 is a genuine OEM washer drive belt used on many Whirlpool-family belt-driven VMW top-load washers. This belt transfers torque from the drive motor pulley to the splutch/drive system to produce agitation and spin. It’s a high-friction rubber belt engineered for controlled slip during start/stop and load balancing events. Common failures include glazing, stretching, cracking, rib wear, contamination from oil/grease, or belt slip caused by a worn splutch, damaged pulley surfaces, or a failing motor/bearing adding drag. Symptoms: no/weak agitation, no/weak spin, burning rubber smell, squeal on start, basket not reaching full RPM, or intermittent “won’t spin with load” complaints. IMPORTANT: If the belt is damaged, inspect the splutch and pulleys—belt failure is often secondary. CRITICAL: Unplug washer before servicing; tipping the unit requires safe handling.

Product Information

Shipping & Returns

Description

W11239857 Washer Drive Belt

The W11239857 is a genuine OEM washer drive belt used on many Whirlpool-family belt-driven VMW top-load washers. This belt transfers torque from the drive motor pulley to the splutch/drive system to produce agitation and spin. It’s a high-friction rubber belt engineered for controlled slip during start/stop and load balancing events. Common failures include glazing, stretching, cracking, rib wear, contamination from oil/grease, or belt slip caused by a worn splutch, damaged pulley surfaces, or a failing motor/bearing adding drag. Symptoms: no/weak agitation, no/weak spin, burning rubber smell, squeal on start, basket not reaching full RPM, or intermittent “won’t spin with load” complaints. IMPORTANT: If the belt is damaged, inspect the splutch and pulleys—belt failure is often secondary. CRITICAL: Unplug washer before servicing; tipping the unit requires safe handling.
