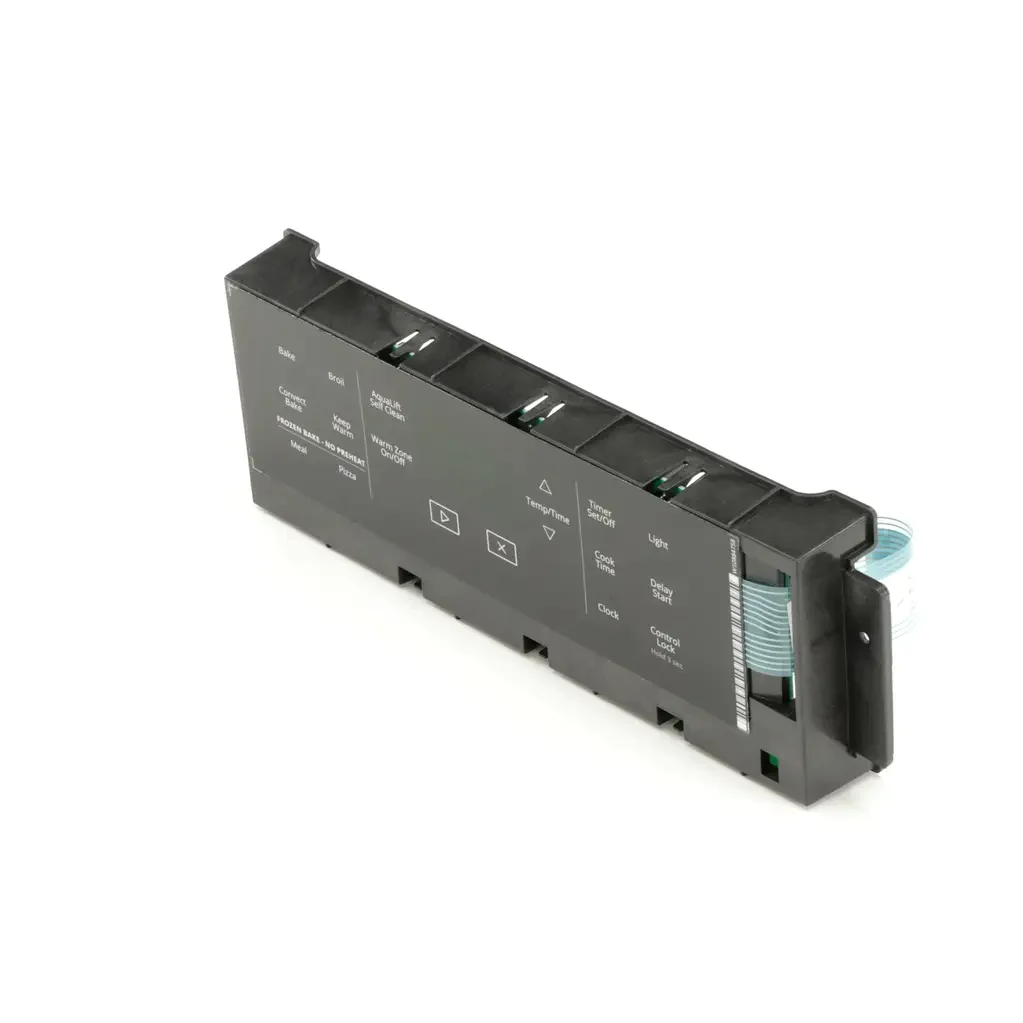

W11536793 Whirlpool Oven Control Board – Fix Your Oven That Won't Heat, Has Error Codes, or Controls Don't Work

The W11536793 oven control board is a genuine Whirlpool OEM replacement part designed for Whirlpool electric ranges. This critical component is the brain of your oven, managing all functions including temperature control, bake and broil elements, self-clean cycle, clock, and timer. When the control board fails, you may experience an oven that won't heat, displays error codes, has unresponsive controls, or won't complete cooking cycles.

Replacing a faulty oven control board restores full functionality to your range, ensuring precise temperature control and reliable operation. This is a common repair part for ovens experiencing electronic control issues.

✓ Common Symptoms Fixed

• Oven won't heat or turn on
• Error codes displayed (F1, F2, F3, F9, etc.)
• Oven controls unresponsive or don't work
• Oven won't reach set temperature
• Oven overheats or temperature inaccurate
• Self-clean cycle won't work
• Clock or timer not functioning
• Oven shuts off randomly during cooking
• Bake or broil element won't turn on

✓ Key Features & Specifications

• Part Number: W11536793 (replaces W10885938, W11106265, W11511567)
• Brand: Whirlpool
• Part Type: Oven Control Board (Electronic Oven Control / ERC)
• Compatibility: Whirlpool electric ranges (WFE775H0H series)
• Function: Controls all oven functions including temperature, elements, and cycles
• Voltage: 120/240V AC
• OEM Quality: Genuine Whirlpool part manufactured to original equipment specifications
• Warranty: Manufacturer's warranty included

✓ Buying Options

We offer genuine OEM Whirlpool parts to ensure perfect fit and reliable performance. OEM (Original Equipment Manufacturer) control boards are made by Whirlpool to exact factory specifications, guaranteeing compatibility with your range model and long-lasting durability. Control boards are complex electronic components where OEM quality is essential for proper operation and safety.

✓ Installation Tips

Difficulty Level: Advanced – Requires working with electrical connections and control panel disassembly

Estimated Time: 60-90 minutes

Tools Needed: Screwdriver, nut driver, work gloves, camera (to document wire connections)

Steps:

1. Disconnect power to range at circuit breaker
2. Remove oven racks
3. Remove screws securing control panel
4. Tilt or remove control panel to access control board
5. Take detailed photos of all wire connections before disconnecting
6. Label wires if needed for reference
7. Disconnect wire harnesses from old control board
8. Remove mounting screws and old control board
9. Install new control board and secure with mounting screws
10. Reconnect all wire harnesses in exact same positions
11. Reinstall control panel and secure with screws
12. Restore power and test all oven functions
13. Set clock and verify temperature accuracy

Safety Note: Always disconnect power at the circuit breaker before working on your range. Take detailed photos of all wire connections before disconnecting. Control board replacement is an advanced repair – if uncomfortable with electrical work or complex disassembly, contact a professional technician.

✓ Compatible Models

This oven control board fits Whirlpool WFE775H0H series electric ranges, including:

• WFE775H0HB0, WFE775H0HB1, WFE775H0HB5
• WFE775H0HV0, WFE775H0HV1, WFE775H0HV5
• WFE775H0HW0, WFE775H0HW1, WFE775H0HW5
• WFE775H0HZ0, WFE775H0HZ1, WFE775H0HZ2, WFE775H0HZ5
• YWFE775H0HB0, YWFE775H0HB1, YWFE775H0HB5
• YWFE775H0HV0, YWFE775H0HV1, YWFE775H0HV5
• YWFE775H0HW0, YWFE775H0HW1, YWFE775H0HW5
• YWFE775H0HZ0, YWFE775H0HZ1

To verify compatibility, check your range's model number (located inside the oven door or on the back panel) against the compatible models list, or contact our support team with your model number for verification.

✓ Replacement Part Numbers

This part replaces the following part numbers:

• W11536793
• W10885938
• W11106265
• W11511567

✓ Why Choose XPart Supply

• 30+ Years Experience: Canadian appliance parts experts since 1994
• Genuine OEM Parts: Factory-authorized Whirlpool replacement components
• Expert Support: Phone and email support from knowledgeable technicians
• Fast Canadian Shipping: Quick delivery across Canada
• Guaranteed Fit: Right part for your model or your money back
• Competitive Pricing: Best prices on genuine Whirlpool parts

✓ Frequently Asked Questions

Q: How do I know if my oven control board is bad?
A: Common signs include error codes on the display (F1, F2, F3, F9), oven won't heat, controls unresponsive, oven won't reach set temperature, or random shutoffs. If you've ruled out heating elements and temperature sensors, the control board is likely faulty. Note that control boards are expensive, so always test other components first.

Q: Will this control board fit my Whirlpool range model?
A: The W11536793 fits Whirlpool WFE775H0H series electric ranges. Check your appliance's model number (located inside the oven door or on the back panel) and compare it with the compatible models list, or contact our support team with your model number for verification before ordering.

Q: Can I install this oven control board myself?
A: This is an advanced repair requiring electrical knowledge and careful attention to wire connections. You must take detailed photos of all wire connections before disconnecting. Most experienced DIYers can complete this in 60-90 minutes. If uncomfortable with electrical work or complex disassembly, hire a professional technician.

Q: What's the difference between OEM and aftermarket control boards?
A: OEM (Original Equipment Manufacturer) control boards like the W11536793 are made by Whirlpool to exact factory specifications with proper voltage ratings, programming, and safety features. Aftermarket control boards may have different firmware or components that can cause compatibility issues, incorrect temperature control, or safety concerns. For control boards, OEM is strongly recommended.

Q: Why is my oven showing an F1 or F9 error code?
A: F1 and F9 error codes typically indicate a control board failure or communication error between the control board and other components. F1 often means a stuck relay on the control board. F9 can indicate a shorted oven temperature sensor or control board issue. Test the temperature sensor first (should read ~1,100 ohms at room temperature). If the sensor tests good, the control board needs replacement.
