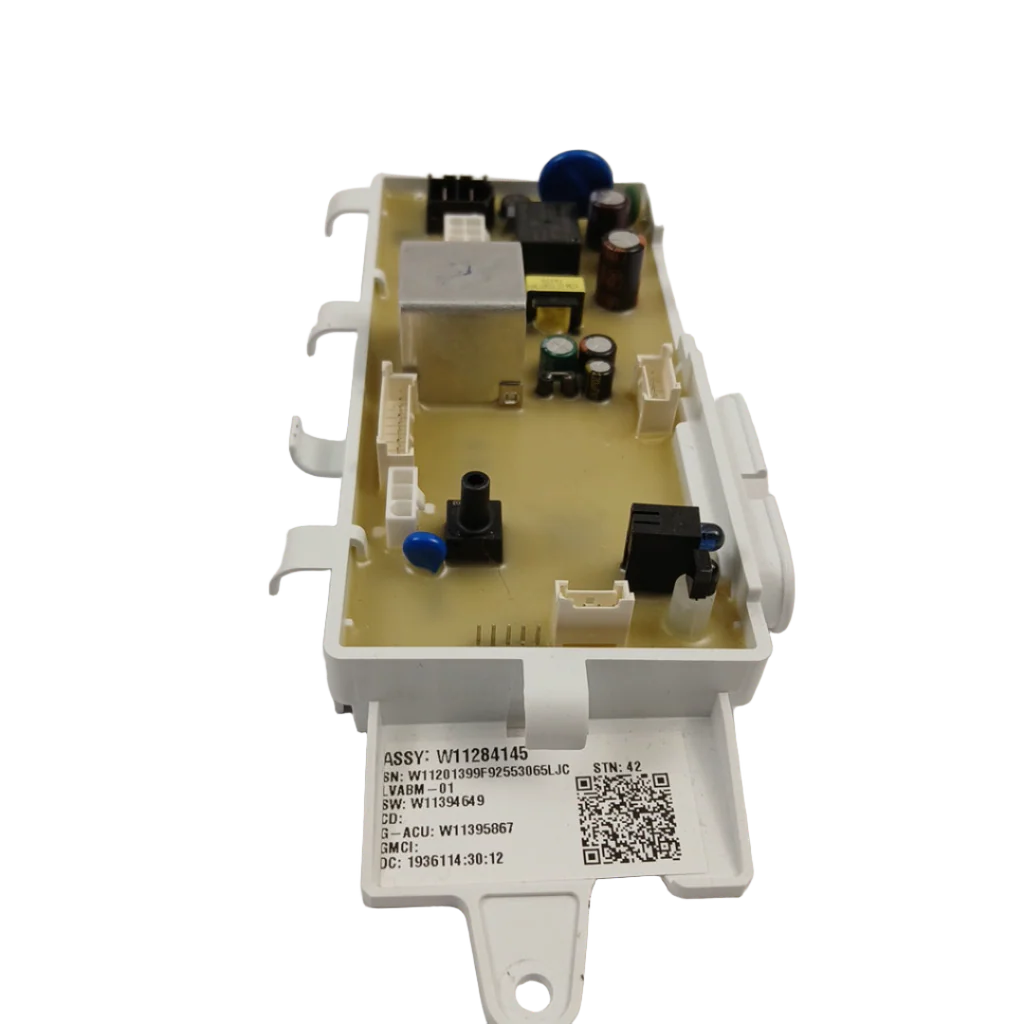

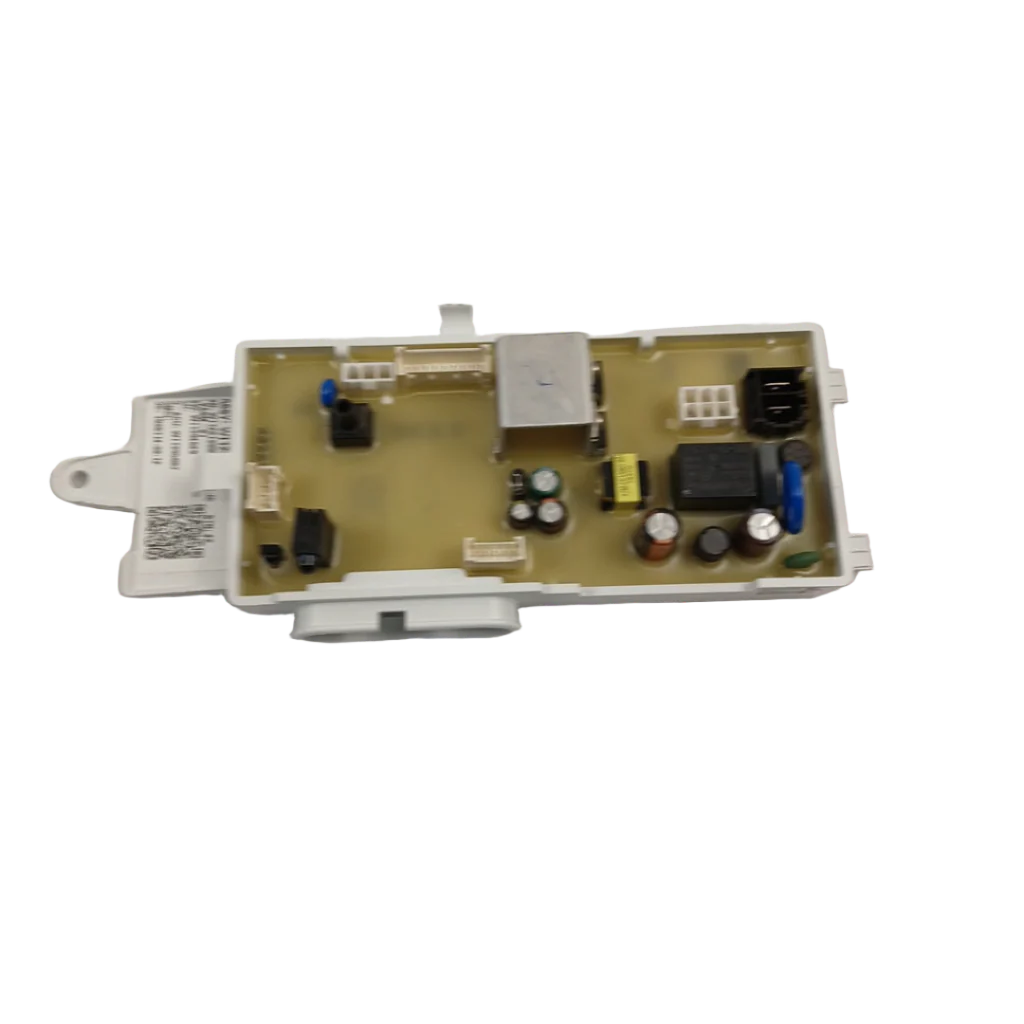

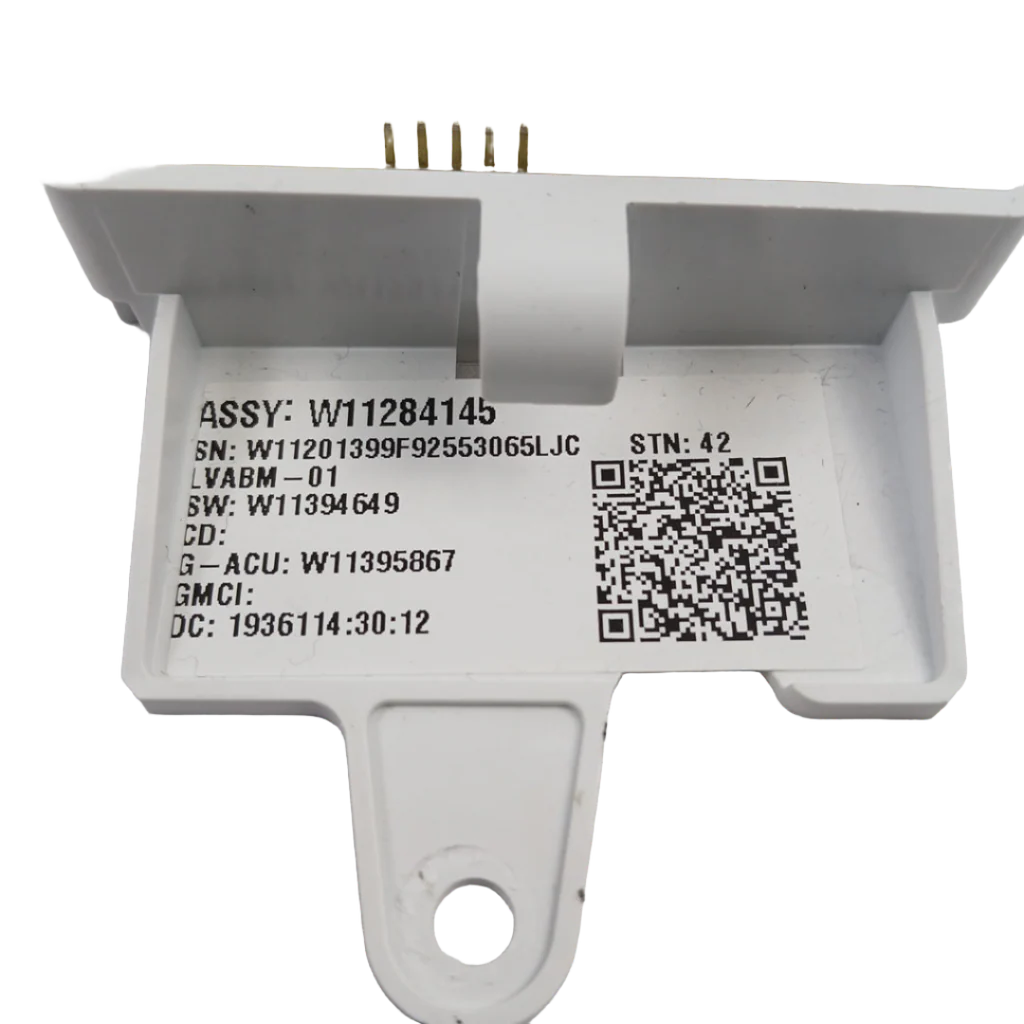

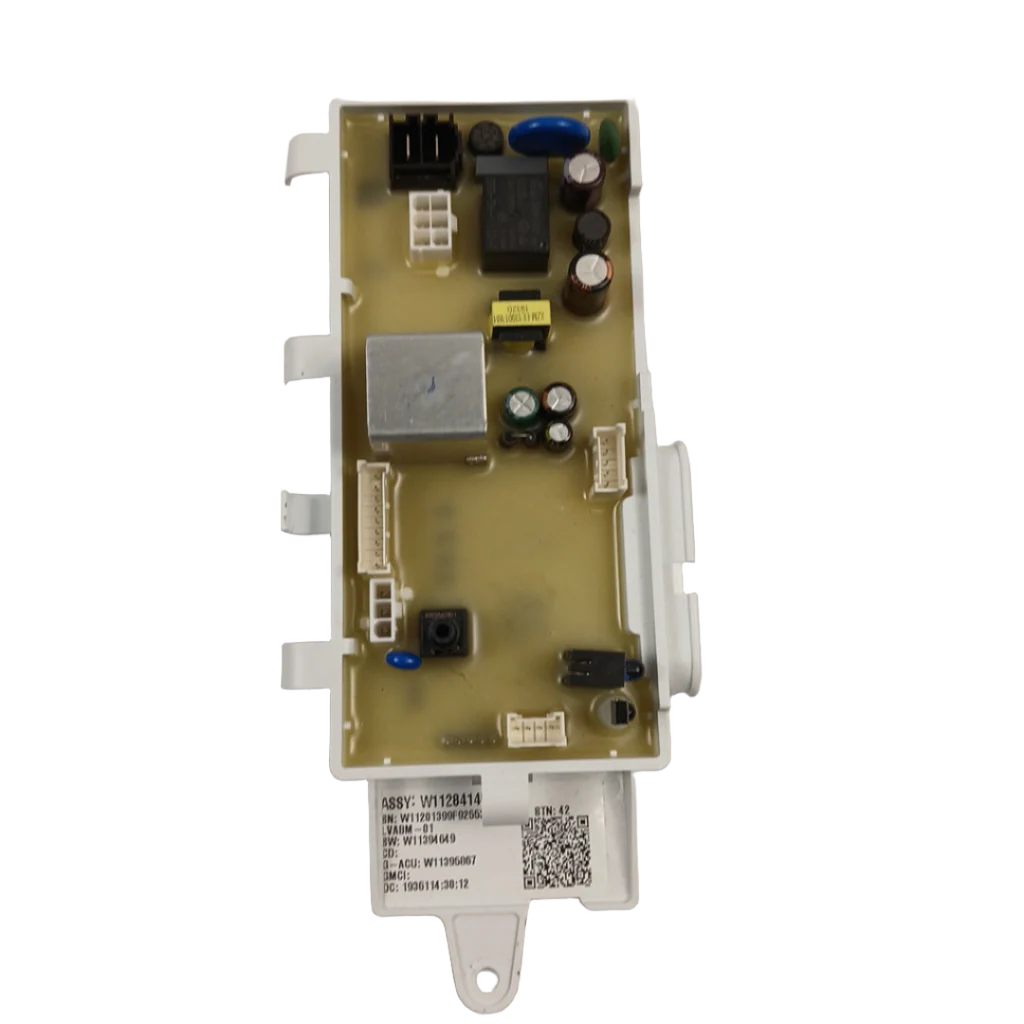

Whirlpool Washer Electronic Control Board W11543994 (Replaces W11297429, W11201284)
W11543994 Whirlpool Washer Electronic Control Board – Fix Error Codes & Unresponsive Controls
The W11543994 Washer Electronic Control Board is the complete fix for a Whirlpool top-load washer that won't start, won't turn on, displays error codes, stops mid-cycle, won't advance through cycles, or has unresponsive controls. The main control board (also called the CCU or motherboard) is the "brain" of your washing machine — it processes input from all sensors and controls every function including the motor, water fill valves, drain pump, lid lock, spin speed, load sensing, shift actuator, and communication with the user interface.
✓ Key Features & Design
- Genuine OEM replacement part for Whirlpool, Maytag, Amana, Roper, Crosley, and Kenmore washers
- Advanced microprocessor controls all washer functions and cycles
- Direct-fit replacement that restores full washer functionality
- Replaces W11297429, W11201284, W11105155, W11105148, and other superseded versions
- Moderate 30–45 minute DIY repair
✓ Performance & Benefits
When the control board fails — due to power surges, moisture intrusion, component burnout, or age — the washer may be completely dead, display random or persistent error codes (F# E# codes), fail to start even with the lid locked, stop mid-cycle without completing, skip cycles, or behave erratically. If you've tested individual components (lid lock, motor, pump, valves) and they check out fine, but the washer still malfunctions — the main control board is the likely culprit.
✓ Common Symptoms
This control board fixes: washer won't start or turn on, displays error codes (F# E# codes), stops mid-cycle without completing, won't advance through cycles, unresponsive controls, washer completely dead, skip cycles, or erratic behavior.
✓ Replacement Part Numbers
Part number W11543994 replaces: W11297429, W11201284, W11105155, W11105148, W11284145, W11419173, W11479877, W11498803, W11538088
✓ Compatible Models
This control board fits multiple Whirlpool, Maytag, Amana, Roper, Crosley, and Kenmore top-load washer models including MVW6230HC0, MVW6230HW0, and more. Check the product tags for your specific model number, or contact our expert support team for fit verification assistance.
✓ Trust Signals
With over 30 years of experience serving Canadian customers, XPart Supply Ltd. provides expert phone support and guaranteed fit assistance. We're a trusted Canadian business committed to helping you get the right part the first time.
✓ Frequently Asked Questions
Q: How do I know if this control board fits my washer model?
A: Check the tags on this product page for your specific model number, or contact our expert support team for fit verification assistance.
Q: Is this an OEM or aftermarket part?
A: This is a genuine OEM replacement part that meets or exceeds original manufacturer specifications.
Q: How difficult is installation?
A: This is a moderate 30–45 minute DIY repair. Always unplug the washer before working on electrical components. We recommend consulting your washer's service manual or contacting our support team for guidance.
