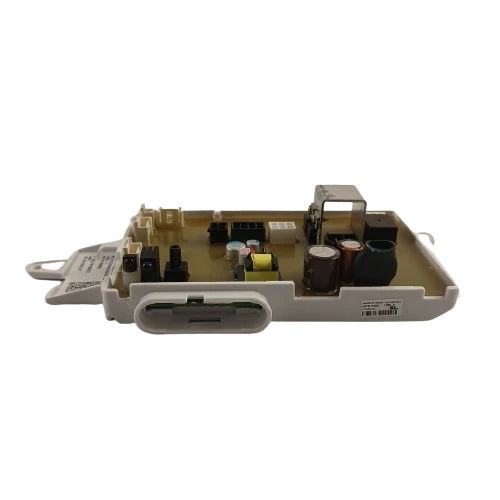

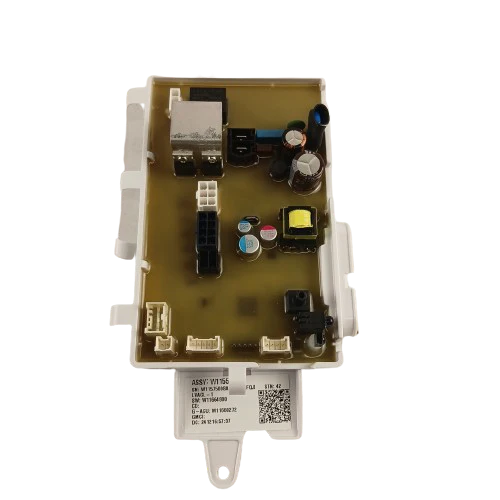

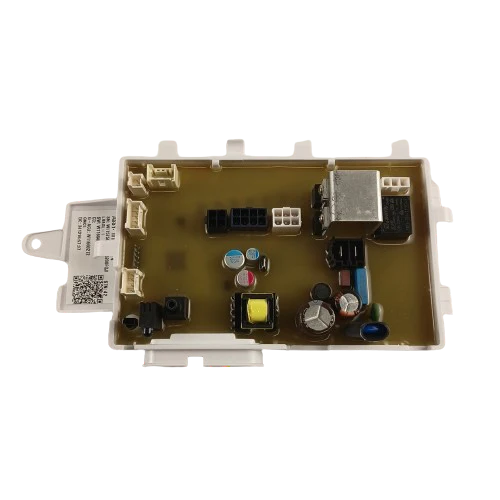

Whirlpool Washer Electronic Control Board W11633362 (Replaces W11553774)
W11633362 Whirlpool Washer Electronic Control Board – Fix Your Washer That Won't Start, Shows Error Codes, or Has Control Panel Issues
The W11633362 is a genuine OEM electronic control board (also called ACU Program Assembly or main control board) for Whirlpool, Maytag, Kenmore, KitchenAid, and Amana top-load washing machines. This critical component is the "brain" of the washer, controlling all functions including cycle selection, water fill, agitation, drain, spin, and error detection. The control board receives input from the user interface panel and sensors, then sends commands to the motor, water valves, drain pump, and other systems to execute the selected wash cycle. Manufactured with precision-engineered circuitry for reliable performance.
Technical Specifications & Design
Manufactured to Whirlpool's exact OEM specifications, this electronic control board features integrated microprocessor that executes washing program logic and cycle control, power supply circuitry that converts 120V AC to DC voltages for board operation, relay switches that control high-current devices like motor, pump, and valves, electrical connectors and terminals for secure connection to washer wiring harness, and protective plastic housing that protects the PCB from moisture and vibration. The board is designed to mount inside the washer cabinet, typically behind the control panel or on the side panel. Built with high-quality components and designed for proper heat dissipation. Typical lifespan is 8–15 years; failures are most often due to power surges, water damage, relay contact wear, or component failure.
Common Failure Symptoms
This electronic control board fixes washers where the washer won't start or has no power, washer displays error codes continuously, washer is stuck on one cycle phase and won't advance, washer fills but won't agitate or spin, washer overfills or underfills, control panel buttons don't respond, washer runs erratically or skips cycle phases, or you notice burning smell from the control panel area. When the control board fails, the washer cannot operate properly or at all.
Installation & Compatibility

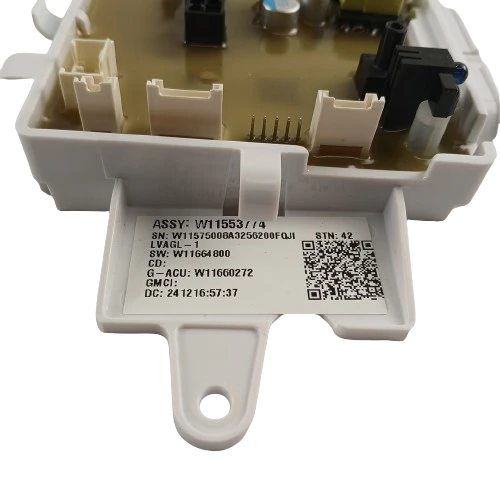

Direct replacement for W11553774. Compatible with Whirlpool, Maytag, Kenmore, KitchenAid, and Amana top-load washers including models MVW6500MBK0, MVW6500MW0. Installation requires basic hand tools and takes 30–45 minutes. CRITICAL: Always disconnect power before servicing. Access requires removing the control panel or cabinet panel to reach the control board mounting location. The board connects via wire harness to all washer components. Verify proper wire connections and test all functions after installation.
Why Choose OEM vs. Aftermarket
IMPORTANT: Only use genuine OEM electronic control boards for proper operation, reliable performance, and warranty compliance. Aftermarket boards may have incompatible programming causing cycle errors, use inferior components that fail prematurely, lack proper safety features, or have incorrect specifications causing function issues. OEM boards are tested to Whirlpool's quality standards and designed specifically for your washer's system, ensuring reliable, safe operation.
