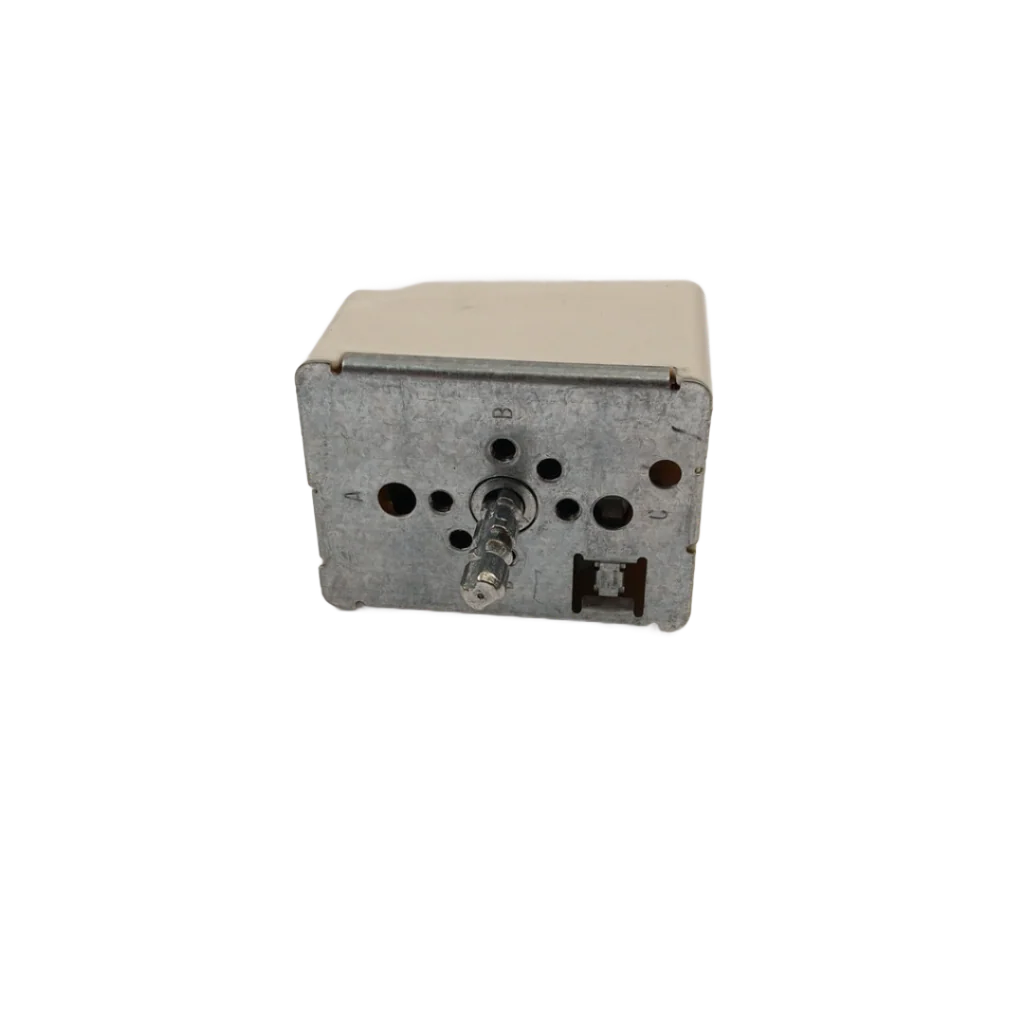

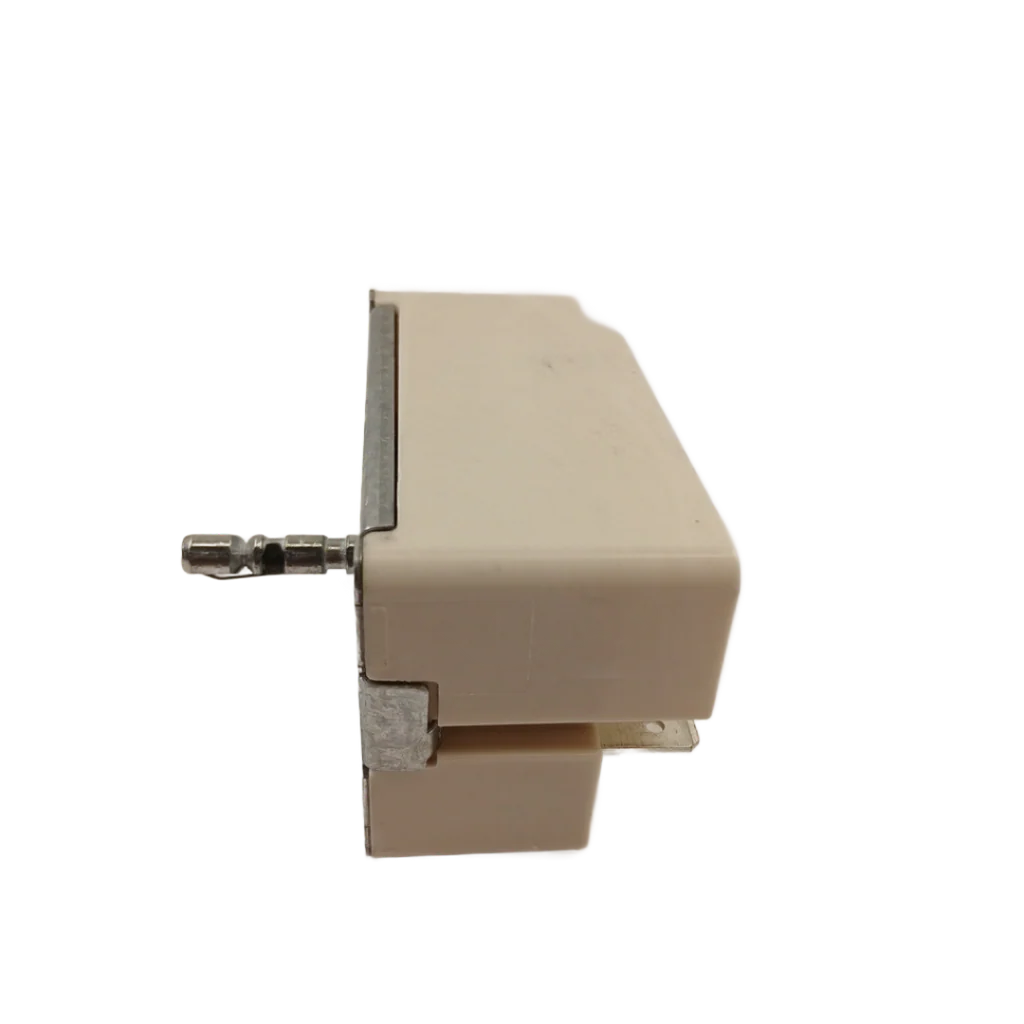

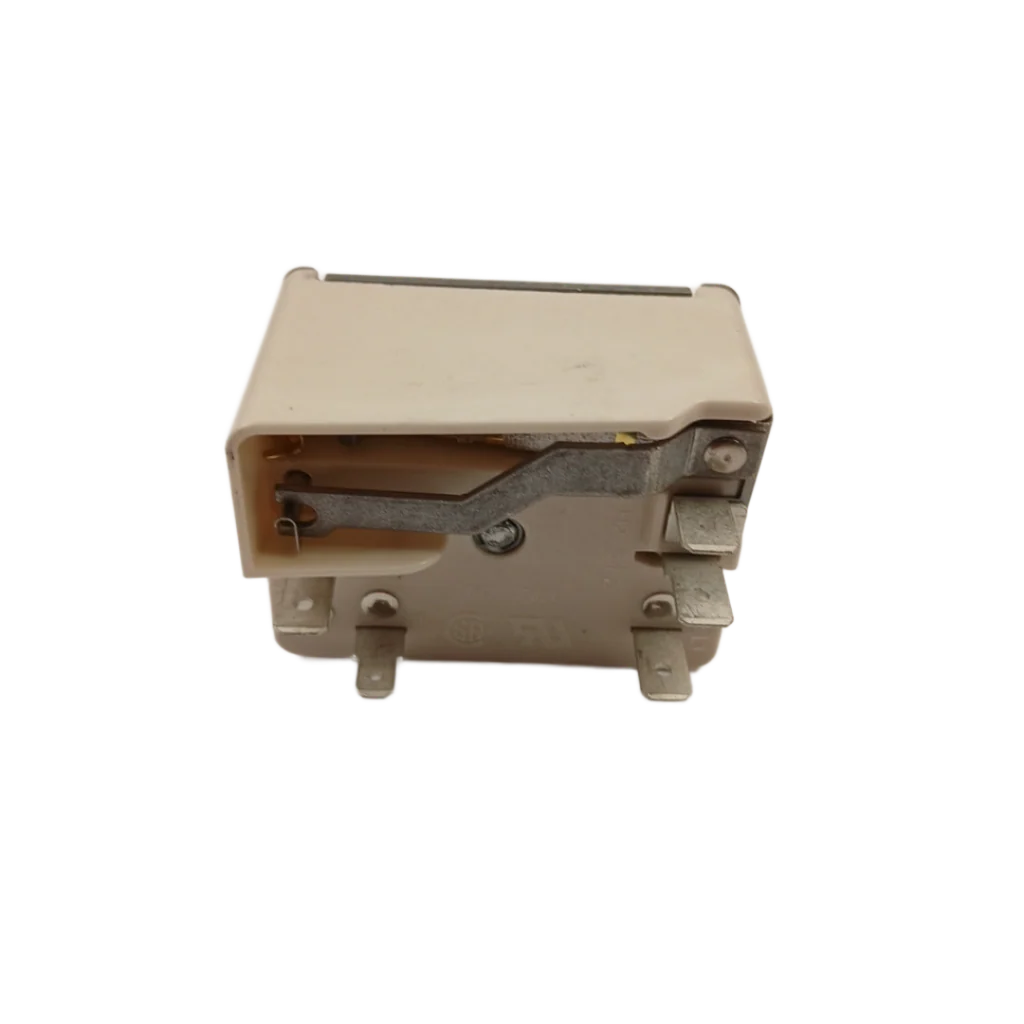

WP3149400 Range Surface Element Switch WP3149400 (Replaces 3149400, 3148954)
WP3149400 Whirlpool Range Surface Element Switch – Precise Temperature Control for 8-Inch Burners
The WP3149400 is a genuine OEM range surface element infinite switch designed for Whirlpool, KitchenAid, Maytag, and related brand electric ranges and cooktops. This critical component controls the heat output of the 8-inch surface element (large burner), allowing you to select cooking temperatures from low simmer to high heat.
âś“ Key Features & Design

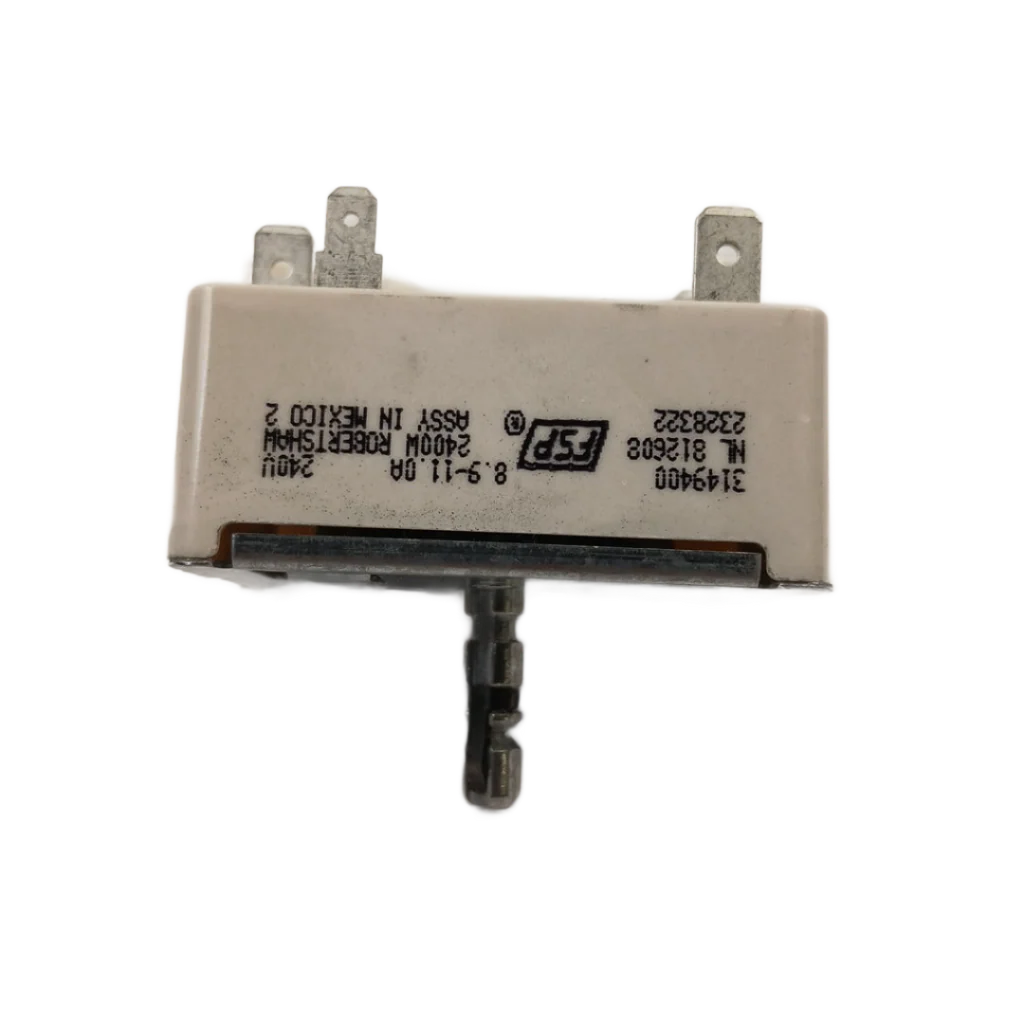

- Rated for 8.9-11.0 amps at 240 volts for precise temperature control
- High-temperature phenolic plastic housing (rated to 400°F continuous)
- Heavy-duty silver-cadmium alloy electrical contacts for superior conductivity
- Bimetallic temperature sensing element for automatic power cycling
- Push-to-turn design prevents accidental burner activation
- Improved contact material for 40% longer lifespan than previous generation
âś“ Performance & Benefits
This infinite switch operates through variable power cycling and temperature sensing. When you rotate the control knob to a desired temperature, the switch's internal cam mechanism adjusts the bimetallic sensing element. The element heats up, bends to open electrical contacts (interrupting power), then cools and straightens to close contacts (restoring power). This automatic on/off cycling maintains your selected temperature without electronic controls.
âś“ Common Failure Symptoms
When the switch fails, you may experience: surface element not heating, element stuck on high heat (contacts welded closed), erratic cycling, not reaching desired temperature, burning smell from switch area, visible housing damage, knob difficult to turn, or intermittent operation. Typical lifespan is 8-15 years with average use.
âś“ Replacement Part Numbers
Part number WP3149400 replaces: 3149400, 3148954, 3148953, 3148951, 311846, 311858, 311859, 314140, 310180, 2786, 5500-287, AP6007666, PS11740783, AP3095444, PS336989, 99989662, W10295573, WP3149400VP
âś“ Compatible Models
This part fits 1,000+ range and cooktop models. Check the product tags on this page for your specific model number, or contact our expert support team for fit verification assistance.
âś“ Important Safety Notes
IMPORTANT: This switch is specifically for 8-inch surface elements rated at 8.9-11.0 amps. Verify your element size and switch amperage rating before ordering. Installing an incorrect amperage switch causes overheating, premature failure, or fire hazard. CRITICAL: Always turn off the circuit breaker and unplug the range before working on electrical components. This repair involves 240-volt connections—exercise extreme caution.
âś“ Trust Signals
With over 30 years of experience serving Canadian customers, XPart Supply Ltd. provides expert phone support and guaranteed fit assistance. We're a trusted Canadian business committed to helping you get the right part the first time.
âś“ Frequently Asked Questions
Q: How do I know if this part fits my range model?
A: Check the tags on this product page for your specific model number, or contact our expert support team for fit verification assistance.
Q: Is this an OEM or aftermarket part?
A: This is a genuine OEM replacement part that meets or exceeds original manufacturer specifications for quality and performance.
Q: How difficult is installation?
A: Installation typically takes 30-60 minutes with basic hand tools. We recommend consulting your range's service manual or contacting our support team for installation guidance.
Original: $2,484.21
-70%$2,484.21
$745.26More Images
