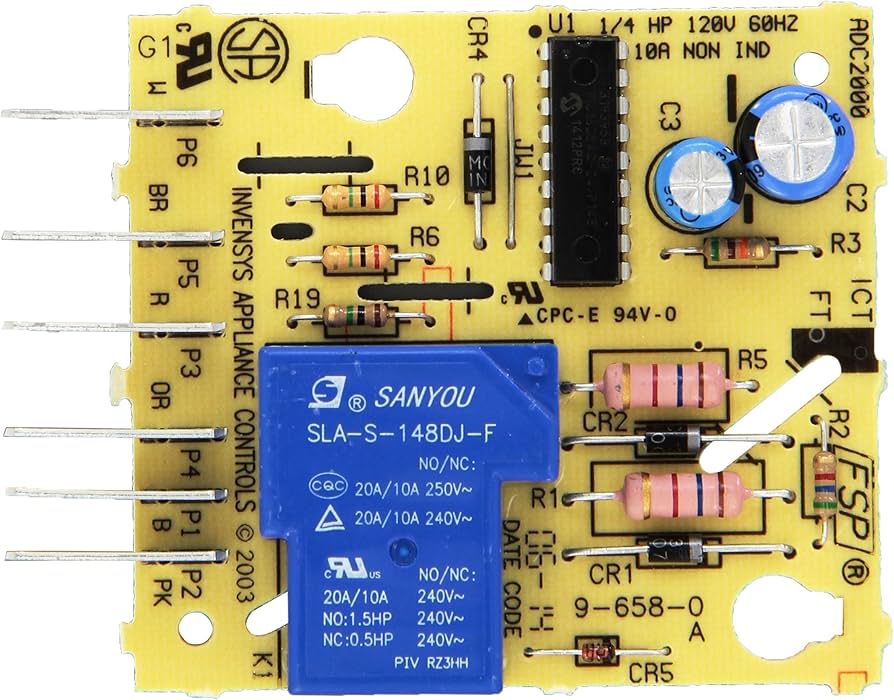

Whirlpool Refrigerator Defrost Control Board WPW10352689 (Replaces W10352689)
WPW10352689 Whirlpool Refrigerator Defrost Control Board – Fix Your Refrigerator with Frost Buildup, Inefficient Cooling, or Defrost Cycle Failure
The WPW10352689 is a genuine OEM defrost control board for Whirlpool refrigerators. This precision-engineered electronic control board manages the automatic defrost cycle, regulating defrost heater operation, temperature monitoring, and cycle timing to prevent frost accumulation on evaporator coils. The board features a microprocessor-controlled circuit with temperature sensors, relay outputs, and diagnostic capabilities for reliable defrost management under varying load conditions.
Technical Specifications & Design
Manufactured to Whirlpool's exact OEM specifications, this defrost control board uses advanced microprocessor technology to monitor evaporator temperature and control defrost heater activation. The board includes integrated safety features such as over-temperature protection, heater time-out circuits, and fail-safe modes to prevent component damage. Built with conformal-coated circuitry for moisture resistance and designed to operate reliably in the high-humidity environment of the refrigerator compartment. Typical lifespan is 8–15 years; failures are most often due to power surges, component fatigue, moisture intrusion, or relay contact wear.
Common Failure Symptoms
This defrost control board fixes refrigerators where frost builds up excessively on the evaporator coils or freezer walls, the refrigerator section doesn't cool properly while the freezer works, the defrost cycle never activates or runs continuously, you hear clicking sounds from the control area, the refrigerator runs constantly without cycling off, or diagnostic codes indicate defrost system failure. When the control board fails, frost accumulation blocks airflow, reducing cooling efficiency, increasing energy consumption, and potentially damaging the evaporator and fan components.
Installation & Compatibility
Direct replacement for W10352689. Compatible with Whirlpool top-freezer and bottom-freezer refrigerators. Installation requires basic hand tools and takes 30–60 minutes. CRITICAL: Always disconnect power before servicing. The board is typically located behind the refrigerator or inside the control housing. Connections include power input, defrost heater output, temperature sensor input, and compressor control. Verify all connections match original board before powering on. Test defrost cycle operation after installation.
Why Choose OEM vs. Aftermarket
IMPORTANT: Only use genuine OEM defrost control boards for proper defrost timing, temperature accuracy, and warranty compliance. Aftermarket boards may use inferior components that fail prematurely, have incorrect defrost cycle timing causing frost buildup or excessive energy use, lack proper safety features creating fire hazards, or have incompatible firmware causing erratic operation. OEM boards are tested to Whirlpool's quality standards and programmed specifically for your refrigerator's defrost requirements, ensuring reliable, efficient operation and maximum food preservation.
