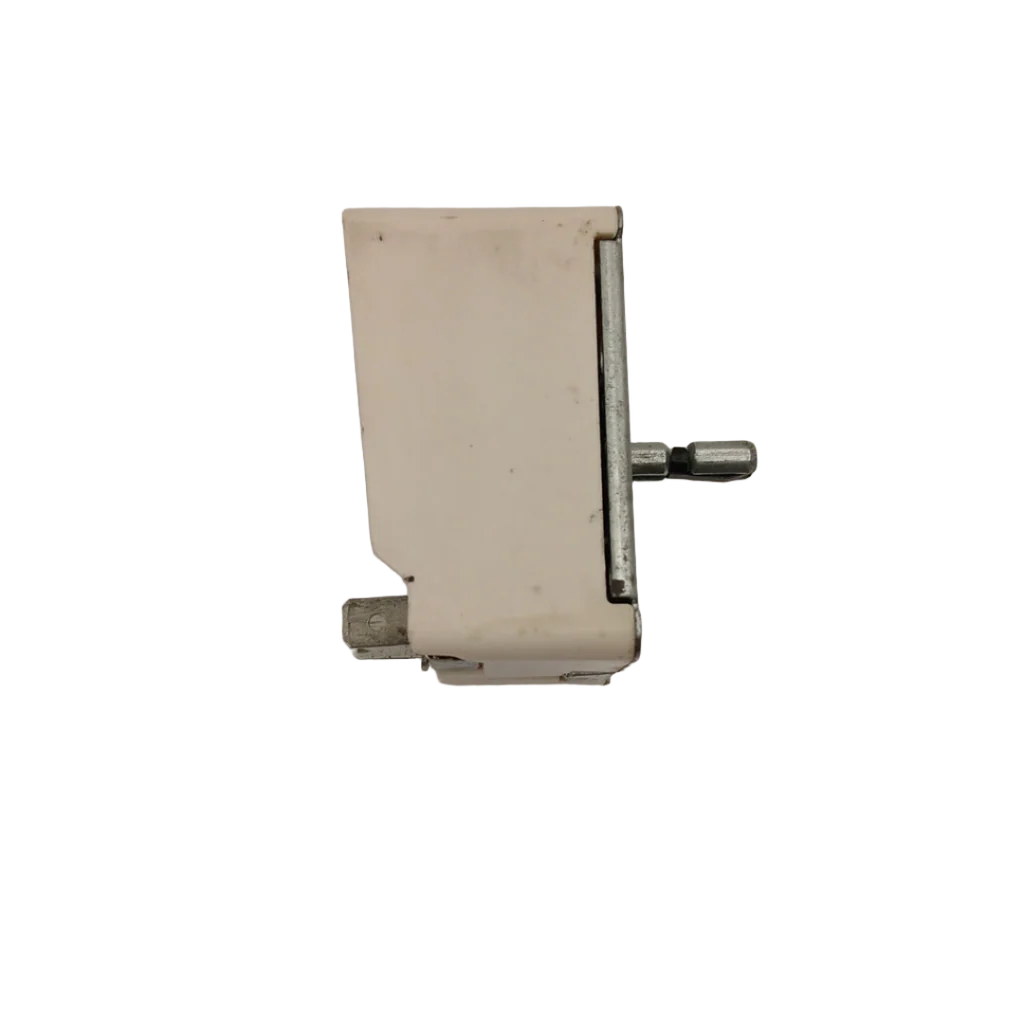

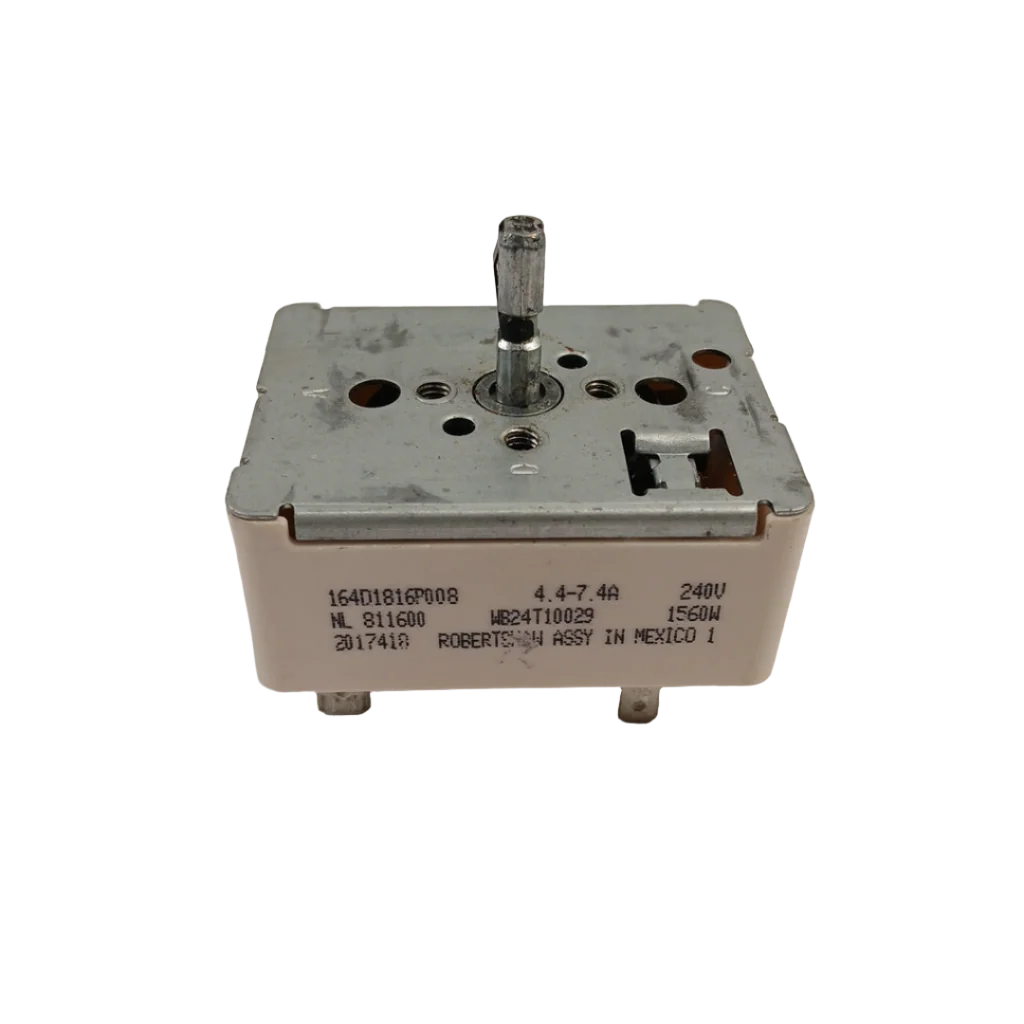

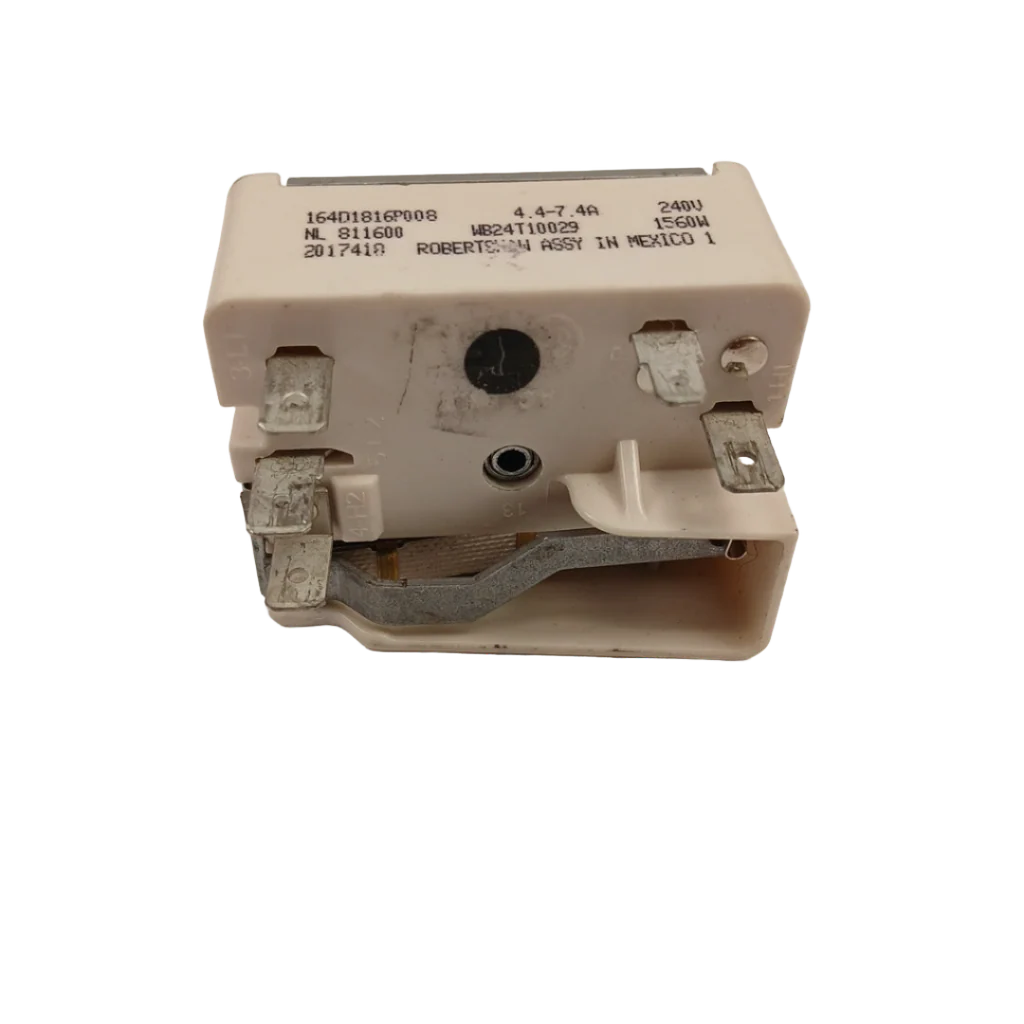

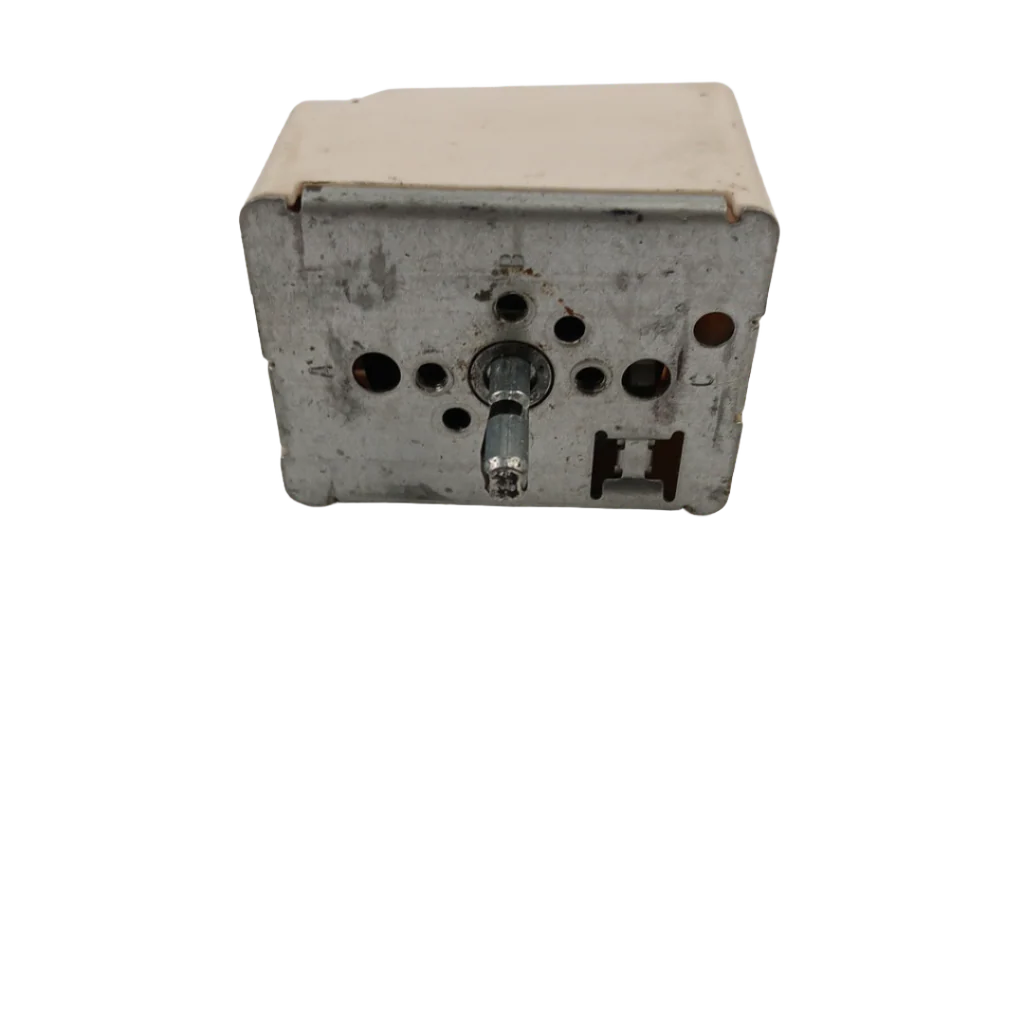

GE Range Surface Element Switch WS01F01650 6" 1560W (Replaces WB24T10029)
WS01F01650 GE Range Surface Element Switch – Infinite Control for 6" 1560W Burner
The WS01F01650 is a surface element (infinite) control switch used on many GE-family electric ranges to regulate power to a surface burner. It cycles the element on/off at a controlled duty cycle to maintain the selected heat level (from low simmer to high). This switch is commonly associated with 6-inch ~1560W surface elements (confirm by model/element position). Failures are typically worn/overheated contacts, internal cam wear, shaft breakage, or heat-damaged terminals from loose spade connections. Symptoms: burner won't heat, stuck on high, no adjustment range, intermittent heat, arcing/burning smell at the console, or a knob that turns freely without "detents." IMPORTANT: Match by part number and verify the burner size/wattage position. CRITICAL: Kill power at the breaker before servicing—this circuit is 240V.
âś“ What's Included
Complete surface element control switch ready for installation.
Original: $7.27
-70%$7.27
$2.18More Images
GE Range Surface Element Switch WS01F01650 6" 1560W (Replaces WB24T10029)
WS01F01650 GE Range Surface Element Switch – Infinite Control for 6" 1560W Burner
The WS01F01650 is a surface element (infinite) control switch used on many GE-family electric ranges to regulate power to a surface burner. It cycles the element on/off at a controlled duty cycle to maintain the selected heat level (from low simmer to high). This switch is commonly associated with 6-inch ~1560W surface elements (confirm by model/element position). Failures are typically worn/overheated contacts, internal cam wear, shaft breakage, or heat-damaged terminals from loose spade connections. Symptoms: burner won't heat, stuck on high, no adjustment range, intermittent heat, arcing/burning smell at the console, or a knob that turns freely without "detents." IMPORTANT: Match by part number and verify the burner size/wattage position. CRITICAL: Kill power at the breaker before servicing—this circuit is 240V.
âś“ What's Included
Complete surface element control switch ready for installation.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
WS01F01650 GE Range Surface Element Switch – Infinite Control for 6" 1560W Burner
The WS01F01650 is a surface element (infinite) control switch used on many GE-family electric ranges to regulate power to a surface burner. It cycles the element on/off at a controlled duty cycle to maintain the selected heat level (from low simmer to high). This switch is commonly associated with 6-inch ~1560W surface elements (confirm by model/element position). Failures are typically worn/overheated contacts, internal cam wear, shaft breakage, or heat-damaged terminals from loose spade connections. Symptoms: burner won't heat, stuck on high, no adjustment range, intermittent heat, arcing/burning smell at the console, or a knob that turns freely without "detents." IMPORTANT: Match by part number and verify the burner size/wattage position. CRITICAL: Kill power at the breaker before servicing—this circuit is 240V.
âś“ What's Included
Complete surface element control switch ready for installation.
