WW03F00111 Washer Transmission Assembly
HomeStore

WW03F00111 Washer Transmission Assembly

WW03F00111 Washer Transmission Assembly

WW03F00111 Washer Transmission Assembly

The WW03F00111 is a genuine OEM washer transmission assembly for GE and Hotpoint top-load washers. This transmission is a critical component that controls all mechanical functions of the washer including agitation during wash cycles, spin cycle operation, and mode shifting between agitate and spin. The transmission assembly is a complex gearcase containing multiple gears, bearings, shafts, clutch mechanisms, and seals that work together to convert motor power into controlled agitator and drum movement at different speeds. During wash and rinse cycles, the transmission drives the agitator in a back-and-forth oscillating motion (approximately 180-degree movement) to move clothes through the water and detergent while keeping the basket stationary. During spin cycles, the transmission locks the basket to the drive shaft and rotates both at high speed (approximately 600-900 RPM) to extract water from clothes. The transmission also contains a neutral position that allows the basket to remain stationary during agitation. The assembly includes internal gears, bearings, seals, and a shift mechanism that switches between agitate and spin modes based on signals from the control system or mechanical timer. Over time, transmissions can fail due to gear wear from thousands of wash cycles, bearing failure from normal wear or lack of lubrication, seal failure allowing water intrusion and internal corrosion, clutch wear from repeated engagement and disengagement, shaft wear or damage, or manufacturing defects. When the transmission fails, symptoms include the washer not spinning (basket doesn't rotate during spin cycle), the washer not agitating (agitator doesn't move during wash cycle), the washer stuck in one mode (agitates but won't spin, or vice versa), grinding, squealing, or clunking noises from the transmission area, excessive vibration during spin cycles, the agitator or basket rotating slowly or inconsistently, oil or grease leaking from the transmission area, or the washer stopping mid-cycle. The WW03F00111 is a complete replacement transmission assembly that restores full washer operation. Replacing a faulty transmission eliminates all transmission-related problems and restores reliable wash and spin functionality. Important: Transmission replacement is a major repair requiring significant mechanical skill and specialized tools. Professional installation is strongly recommended.

Key Features and Design

This expertly crafted transmission assembly is designed for maximum efficiency, featuring durable construction that enhances your washing machine's spinning capabilities. With a compact and precise design, it's engineered to fit seamlessly into compatible models, ensuring reliable performance with every load. Key specifications include a SKU of WW03F00111, making it a straightforward replacement for parts like WH16M00124.

  • Improves agitation and spin cycles for thorough cleaning and reduced wear.
  • Built with high-quality materials to withstand frequent use and extend appliance life.
  • Compatible with models such as GTUN275EM0WW and GUAN275ED2WW, offering versatile application.

Performance and Benefits

By installing this transmission assembly, you can resolve issues like inconsistent spinning or inefficient cycles, leading to cleaner clothes and energy savings over time. It enhances your washing machine's overall durability, reducing the need for frequent repairs and helping you maintain a smooth laundry experience without the hassle of downtime.

Upgrade your washing machine with our WW03F00111 Washer Transmission Assembly. Designed for maximum efficiency, this transmission assembly will improve your machine's performance and durability. With improved spinning capability, your clothes will come out cleaner than ever before. Invest in quality with this expertly crafted transmission assembly.

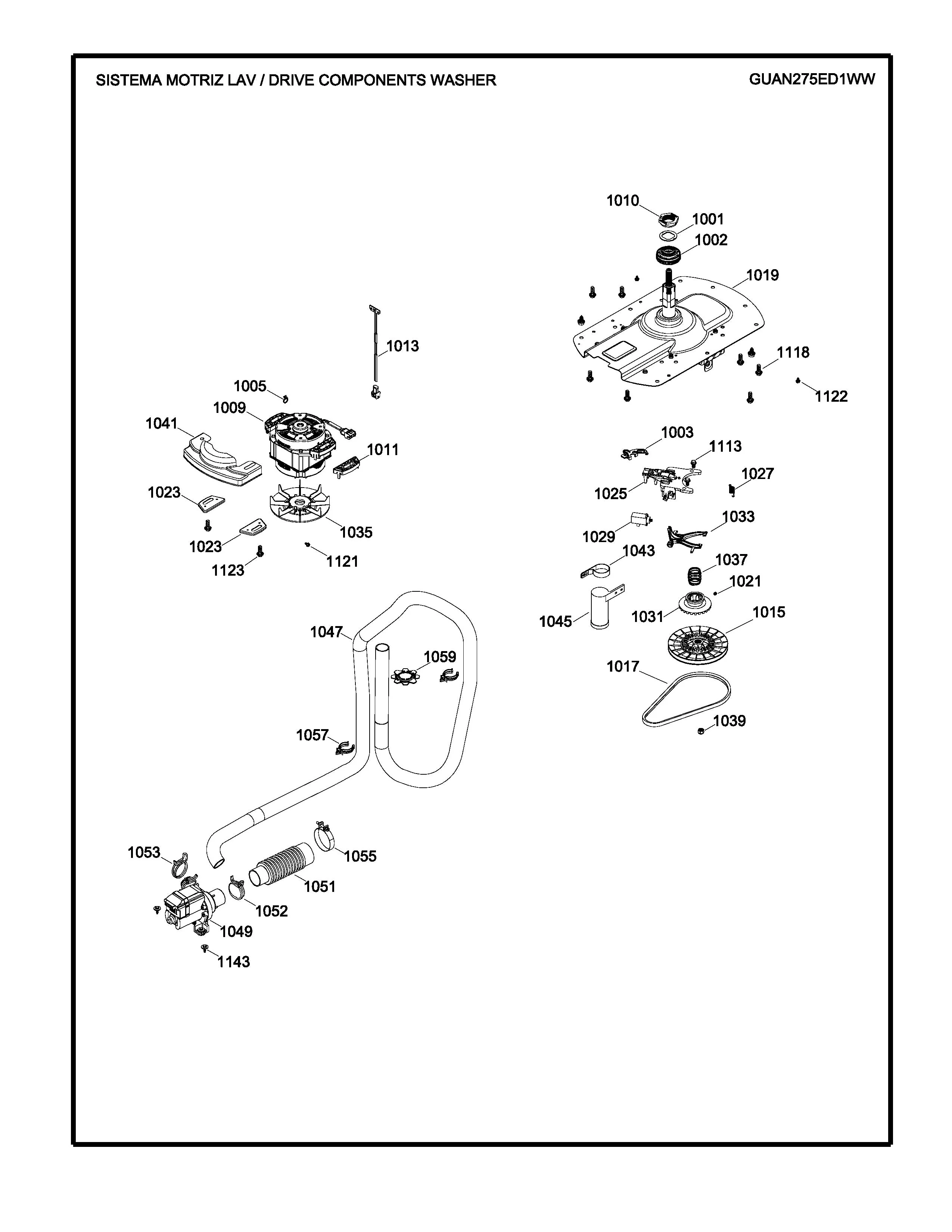

Item #1019 in diagram

Part Number WW03F00111 replaces WH16M00124, 189D5234G004

Supported Models:

C978-973220, C978-973221, GTUN275EM0WW, GTUP270EM2WW, GTUP270EM3WW, GTUP270EM4WW, GTUP270GM4WW, GTUP270GM5WW, GUAN275ED0WW, GUAN275ED1WW, GUAN275ED2WW, GUAP270EM2WW, GUAP270EM3WW, GUAP270EM4WW

$132,759.29
WW03F00111 Washer Transmission Assembly—
$132,759.29

More Images

WW03F00111 Washer Transmission Assembly - Image 2
WW03F00111 Washer Transmission Assembly - Image 3

WW03F00111 Washer Transmission Assembly

WW03F00111 Washer Transmission Assembly

The WW03F00111 is a genuine OEM washer transmission assembly for GE and Hotpoint top-load washers. This transmission is a critical component that controls all mechanical functions of the washer including agitation during wash cycles, spin cycle operation, and mode shifting between agitate and spin. The transmission assembly is a complex gearcase containing multiple gears, bearings, shafts, clutch mechanisms, and seals that work together to convert motor power into controlled agitator and drum movement at different speeds. During wash and rinse cycles, the transmission drives the agitator in a back-and-forth oscillating motion (approximately 180-degree movement) to move clothes through the water and detergent while keeping the basket stationary. During spin cycles, the transmission locks the basket to the drive shaft and rotates both at high speed (approximately 600-900 RPM) to extract water from clothes. The transmission also contains a neutral position that allows the basket to remain stationary during agitation. The assembly includes internal gears, bearings, seals, and a shift mechanism that switches between agitate and spin modes based on signals from the control system or mechanical timer. Over time, transmissions can fail due to gear wear from thousands of wash cycles, bearing failure from normal wear or lack of lubrication, seal failure allowing water intrusion and internal corrosion, clutch wear from repeated engagement and disengagement, shaft wear or damage, or manufacturing defects. When the transmission fails, symptoms include the washer not spinning (basket doesn't rotate during spin cycle), the washer not agitating (agitator doesn't move during wash cycle), the washer stuck in one mode (agitates but won't spin, or vice versa), grinding, squealing, or clunking noises from the transmission area, excessive vibration during spin cycles, the agitator or basket rotating slowly or inconsistently, oil or grease leaking from the transmission area, or the washer stopping mid-cycle. The WW03F00111 is a complete replacement transmission assembly that restores full washer operation. Replacing a faulty transmission eliminates all transmission-related problems and restores reliable wash and spin functionality. Important: Transmission replacement is a major repair requiring significant mechanical skill and specialized tools. Professional installation is strongly recommended.

Key Features and Design

This expertly crafted transmission assembly is designed for maximum efficiency, featuring durable construction that enhances your washing machine's spinning capabilities. With a compact and precise design, it's engineered to fit seamlessly into compatible models, ensuring reliable performance with every load. Key specifications include a SKU of WW03F00111, making it a straightforward replacement for parts like WH16M00124.

  • Improves agitation and spin cycles for thorough cleaning and reduced wear.
  • Built with high-quality materials to withstand frequent use and extend appliance life.
  • Compatible with models such as GTUN275EM0WW and GUAN275ED2WW, offering versatile application.

Performance and Benefits

By installing this transmission assembly, you can resolve issues like inconsistent spinning or inefficient cycles, leading to cleaner clothes and energy savings over time. It enhances your washing machine's overall durability, reducing the need for frequent repairs and helping you maintain a smooth laundry experience without the hassle of downtime.

Upgrade your washing machine with our WW03F00111 Washer Transmission Assembly. Designed for maximum efficiency, this transmission assembly will improve your machine's performance and durability. With improved spinning capability, your clothes will come out cleaner than ever before. Invest in quality with this expertly crafted transmission assembly.

Item #1019 in diagram

Part Number WW03F00111 replaces WH16M00124, 189D5234G004

Supported Models:

C978-973220, C978-973221, GTUN275EM0WW, GTUP270EM2WW, GTUP270EM3WW, GTUP270EM4WW, GTUP270GM4WW, GTUP270GM5WW, GUAN275ED0WW, GUAN275ED1WW, GUAN275ED2WW, GUAP270EM2WW, GUAP270EM3WW, GUAP270EM4WW

Product Information

Shipping & Returns

Description

WW03F00111 Washer Transmission Assembly

The WW03F00111 is a genuine OEM washer transmission assembly for GE and Hotpoint top-load washers. This transmission is a critical component that controls all mechanical functions of the washer including agitation during wash cycles, spin cycle operation, and mode shifting between agitate and spin. The transmission assembly is a complex gearcase containing multiple gears, bearings, shafts, clutch mechanisms, and seals that work together to convert motor power into controlled agitator and drum movement at different speeds. During wash and rinse cycles, the transmission drives the agitator in a back-and-forth oscillating motion (approximately 180-degree movement) to move clothes through the water and detergent while keeping the basket stationary. During spin cycles, the transmission locks the basket to the drive shaft and rotates both at high speed (approximately 600-900 RPM) to extract water from clothes. The transmission also contains a neutral position that allows the basket to remain stationary during agitation. The assembly includes internal gears, bearings, seals, and a shift mechanism that switches between agitate and spin modes based on signals from the control system or mechanical timer. Over time, transmissions can fail due to gear wear from thousands of wash cycles, bearing failure from normal wear or lack of lubrication, seal failure allowing water intrusion and internal corrosion, clutch wear from repeated engagement and disengagement, shaft wear or damage, or manufacturing defects. When the transmission fails, symptoms include the washer not spinning (basket doesn't rotate during spin cycle), the washer not agitating (agitator doesn't move during wash cycle), the washer stuck in one mode (agitates but won't spin, or vice versa), grinding, squealing, or clunking noises from the transmission area, excessive vibration during spin cycles, the agitator or basket rotating slowly or inconsistently, oil or grease leaking from the transmission area, or the washer stopping mid-cycle. The WW03F00111 is a complete replacement transmission assembly that restores full washer operation. Replacing a faulty transmission eliminates all transmission-related problems and restores reliable wash and spin functionality. Important: Transmission replacement is a major repair requiring significant mechanical skill and specialized tools. Professional installation is strongly recommended.

Key Features and Design

This expertly crafted transmission assembly is designed for maximum efficiency, featuring durable construction that enhances your washing machine's spinning capabilities. With a compact and precise design, it's engineered to fit seamlessly into compatible models, ensuring reliable performance with every load. Key specifications include a SKU of WW03F00111, making it a straightforward replacement for parts like WH16M00124.

  • Improves agitation and spin cycles for thorough cleaning and reduced wear.
  • Built with high-quality materials to withstand frequent use and extend appliance life.
  • Compatible with models such as GTUN275EM0WW and GUAN275ED2WW, offering versatile application.

Performance and Benefits

By installing this transmission assembly, you can resolve issues like inconsistent spinning or inefficient cycles, leading to cleaner clothes and energy savings over time. It enhances your washing machine's overall durability, reducing the need for frequent repairs and helping you maintain a smooth laundry experience without the hassle of downtime.

Upgrade your washing machine with our WW03F00111 Washer Transmission Assembly. Designed for maximum efficiency, this transmission assembly will improve your machine's performance and durability. With improved spinning capability, your clothes will come out cleaner than ever before. Invest in quality with this expertly crafted transmission assembly.

Item #1019 in diagram

Part Number WW03F00111 replaces WH16M00124, 189D5234G004

Supported Models:

C978-973220, C978-973221, GTUN275EM0WW, GTUP270EM2WW, GTUP270EM3WW, GTUP270EM4WW, GTUP270GM4WW, GTUP270GM5WW, GUAN275ED0WW, GUAN275ED1WW, GUAN275ED2WW, GUAP270EM2WW, GUAP270EM3WW, GUAP270EM4WW
