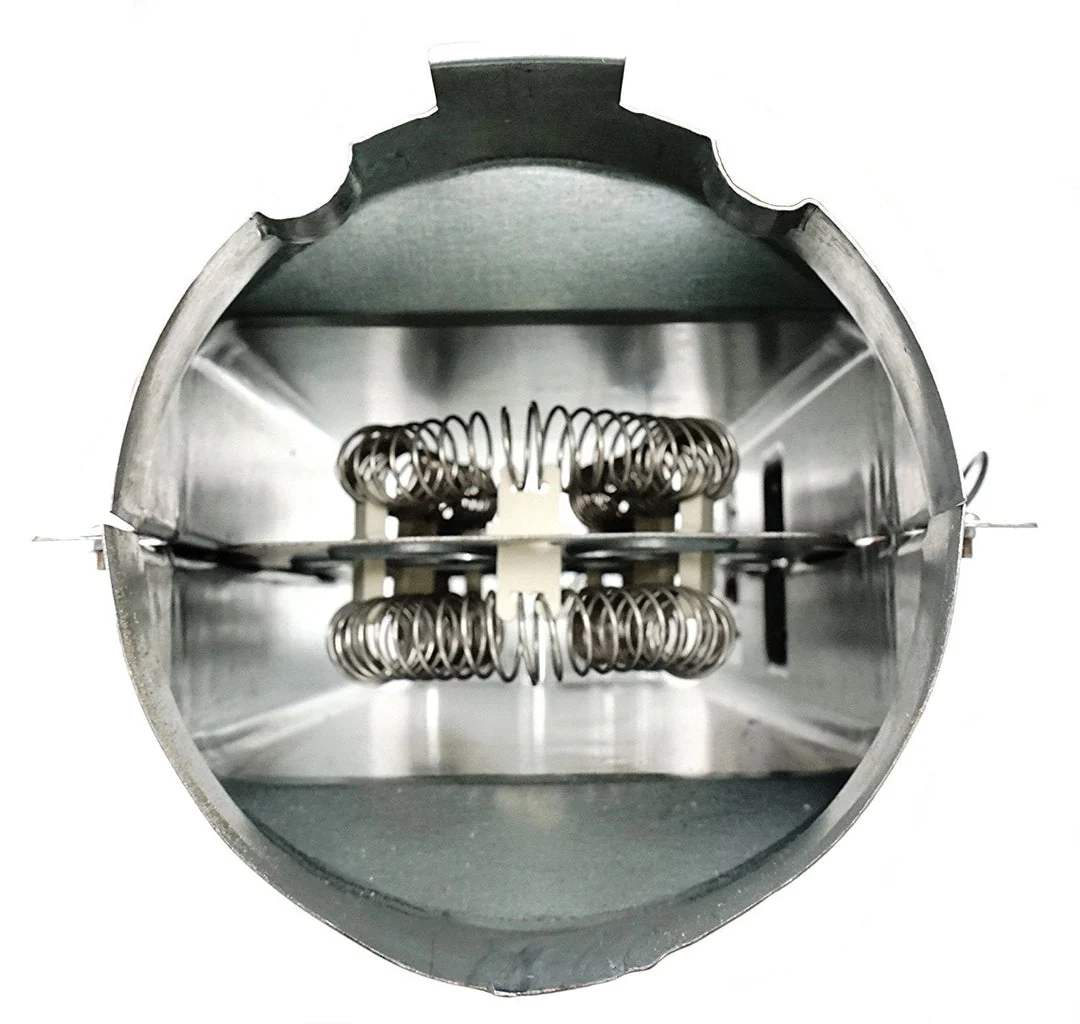

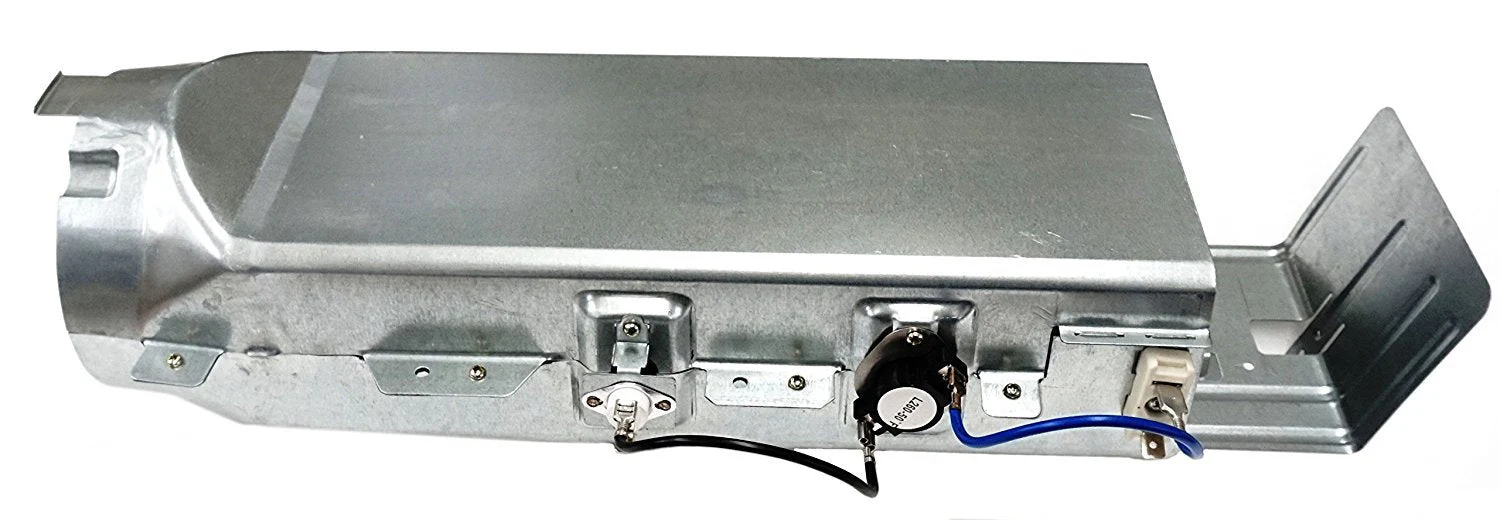

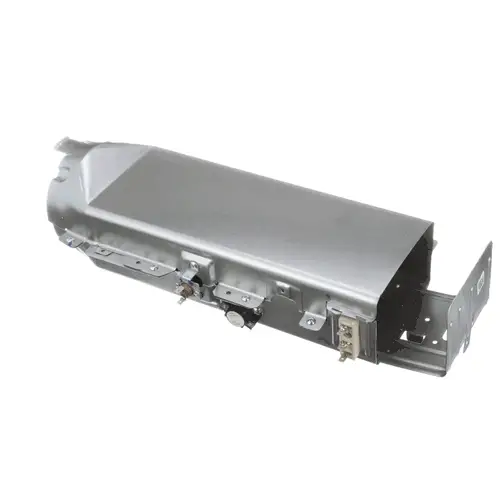

DC97-14486A Samsung Dryer Heating Element Assembly – Complete 5300W Heating System for Reliable Drying

The DC97-14486A is a genuine OEM complete dryer heating element assembly for Samsung, Kenmore, Maytag, and Amana electric dryers. This is a comprehensive heating system assembly that includes all components needed for heat generation and temperature regulation in one ready-to-install unit, eliminating the need to purchase individual parts separately.

✓ Key Features and Design

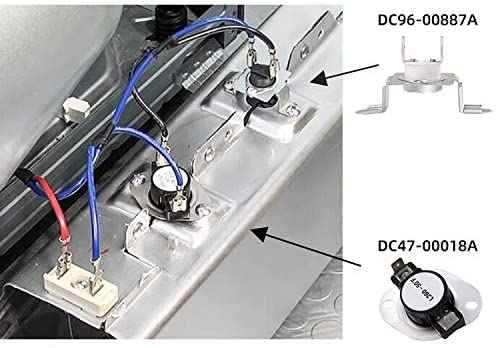

• Complete Assembly: Includes heating element, housing, high-limit thermostat DC47-00018A, and thermal fuse DC96-00887A.
• High Power Output: 5300W at 240V with nichrome wire heating coil rated for continuous high-temperature operation.
• Safety Features: Integrated high-limit thermostat (opens at 250-280°F) and thermal fuse for overheat protection.
• Direct Replacement: Replaces DC97-14486D, 35001119 with improved coil design for longer life.

✓ Performance and Benefits

When the heating element assembly fails, symptoms include dryer not heating (drum tumbles but no heat), clothes taking too long to dry, dryer overheating, visible damage to element coil, burning smell, or thermal fuse blown. From XPart Supply Ltd., a trusted provider of quality appliance parts, this complete assembly restores proper heating function and ensures safe operation.

✓ What's Included

Complete ready-to-install assembly with heating element, galvanized steel housing (19" x 7" x 5.5"), integrated high-limit thermostat, thermal fuse, mounting brackets, and hardware. CRITICAL: Always unplug the dryer and turn off the circuit breaker before installation. Clean lint filter and exhaust vent thoroughly to prevent overheating.
